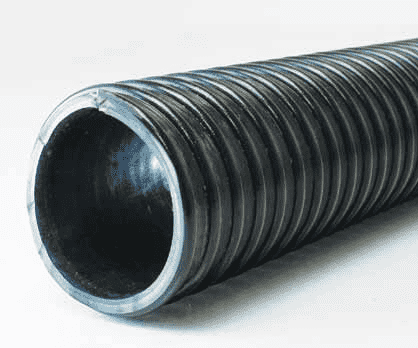

3020-0800-050 by Jason Industrial | 3020 Series | HD Polyurethane Lined | PVC Material Handling Hose | Black | 30 PSI | 8" ID | 9.16" OD | 50ft

3020-0800-050 by Jason Industrial | 3020 Series | HD Polyurethane Lined | PVC Material Handling Hose | Black | 30 PSI | 8" ID | 9.16" OD | 50ft

Save $1,071.62 Save $1,071.62
$3,750.66
$3,750.66 - $3,750.66
$3,750.66
$2,679.04
$2,679.04 - $2,679.04
$2,679.04

Jason Industrial Inc. Hose - Material Handling Hose - 3020 HD Polyurethane Lined, PVC Material Handling Hose - Black

Package Quantity: 50 FT

Specifications for Variant SKU: 3020-0800-050 Jason | 50 |
Series: 3020 Series
Hose Color(s): Black
Internal Diameter: 8in
Outer Diameter: 9.16in
Tubing Construction: Polyurethane
Cover Construction: PVC
Special Properties: Outer Helix Protection, Static Dissipating Cover

SPECIFICATIONS

Application: For vacuum and transfer of abrasive crushed rock, gravel, sand or dry fertilizers, fly ash and also used for shot blast recovery. SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane Abrasion Resistant Liner
Reinforcement: Clockwise PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Abrasion resistant PU liner
  • Static dissipating cover compound
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Glo-Glide" external clockwise PVC helix
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3020-0150-100 1-1/2" 38.10mm 1.85" 46.99mm PVC Helix 50 PSI 3.45 BAR 29.0 inHg 0.42 lb./ft. 0.63 KG/m 2.00" 50.80mm 100ft
3020-0200-100 2" 50.80mm 2.40" 60.96mm PVC Helix 40 PSI 2.76 BAR 29.0 inHg 0.59 lb./ft. 0.88 KG/m 3.00" 76.20mm 100ft
3020-0250-100 2-1/2" 63.50mm 3.09" 78.49mm PVC Helix 40 PSI 2.76 BAR 29.00 inHg 0.82 lb./ft. 1.22 KG/m 3.00" 76.20mm 100ft
3020-0300-100 3" 76.20mm 3.64" 92.46mm PVC Helix 40 PSI 2.76 BAR 29.0 inHg 1.18 lb./ft. 1.76 KG/m 4.00" 101.60mm 100ft
3020-0400-100 4" 101.60mm 4.76" 120.90mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 1.94 lb./ft. 2.89 KG/m 6.00" 152.40mm 100ft
3020-0600-050 6" 152.40mm 6.80" 172.72mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.50 lb./ft. 5.21 KG/m 12.00" 304.80mm 50ft
3020-0600-100 6" 152.40mm 6.80" 172.72mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.50 lb./ft. 5.21 KG/m 12.00" 304.80mm 100ft
3020-0800-020 8" 203.20mm 9.16" 232.66mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 5.90 lb./ft. 8.78 KG/m 18.00" 457.20mm 20ft
3020-0800-050 8" 203.20mm 9.16" 232.66mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 5.90 lb./ft. 8.78 KG/m 18.00" 457.20mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
