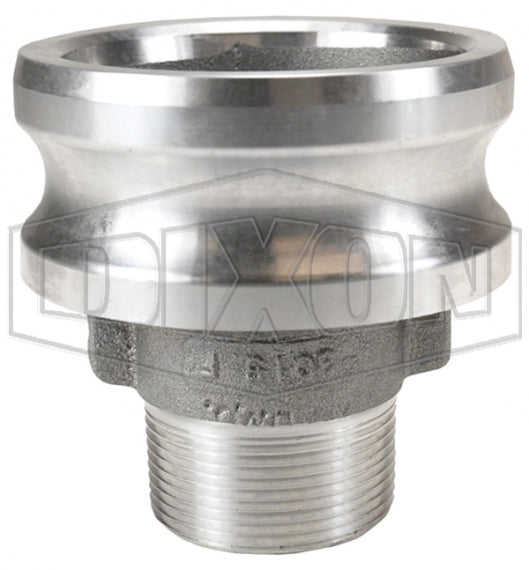

3020-F-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Adapter | Type F | 3" Adapter x 2" Male NPT | Aluminum

3020-F-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Adapter | Type F | 3" Adapter x 2" Male NPT | Aluminum

Save $29.36 Save $29.36
$73.40
$73.40 - $73.40
$73.40
$44.04
$44.04 - $44.04
$44.04

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type F | Adapter x Male NPT

Designed for use with liquids.
Specifications for Variant SKU: 3020-F-AL Dixon
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3in Male Cam & Groove, 2in Male NPT
Material(s): Aluminum
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
Adapter x Male NPT		 Maximum Operating Pressure
1520-F-AL - 1-1/2" x 2" 250 PSI
2015-F-AL 2015-F-SS 2" x 1-1/2" 250 PSI
2030-F-AL - 2" x 3" 125 PSI
3015-F-AL 3015-F-SS* 3" x 1-1/2" 125 PSI
3020-F-AL 3020-F-SS 3" x 2" 125 PSI
3040-F-AL - 3" x 4" 100 PSI
4030-F-AL 4030-F-SS 4" x 3" 100 PSI

* Parts are produced as a welded fabrication.
