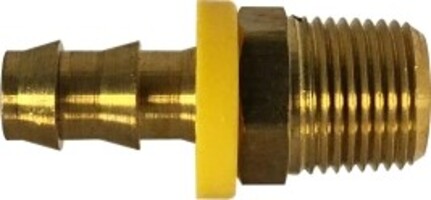

30206LF (30-206LF) by Midland | Lead Free Push-On Fitting | Male Adapter | 1/2" Hose ID x 3/8" Male NPTF | Straight | Brass

Save $1.19

$2.98

$2.98 - $2.98

$2.98

$1.79

$1.79 - $1.79

$1.79

Midland Industries
Lead Free Brass Fitting - Push-On Fitting - Male Adapter

Inventory @ Manufacturers Warehouse: 3 Units

Specifications for Variant SKU: 30206LF Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 3/8in Male NPTF
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Part Number	Hose ID x Male NPTF
30200LF (30-200LF)	1/4" x 1/8"
30203LF (30-203LF)	3/8" x 1/4"
30204LF (30-204LF)	3/8" x 3/8"
30206LF (30-206LF)	1/2" x 3/8"
30207LF (30-207LF)	1/2" x 1/2"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
