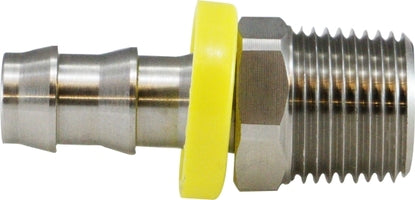

30206SS (30-206SS) Midland Push On Hose Barb - Male Adapter - 1/2" Hose ID x 3/8" Male NPT - 316 Stainless Steel

30206SS by Midland | Push On Hose Barb | 1/2" Hose ID x 3/8" Male NPT | Adapter | 316 Stainless Steel

Save $1.56 Save $1.56
$14.03
$14.03 - $14.03
$14.03
$12.47
$12.47 - $12.47
$12.47

Midland Industries
Brass Fitting - Push On Barb Fitting - Male Adapter

316 Stainless Steel

Inventory @ Manufacturers Warehouse: 146 Units
Specifications for Variant SKU: 30206SS Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-On Hose Barb, 3/8in Male NPT
Material(s): 316 Stainless Steel

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: N/A


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Part Number Hose ID x Male NPT A B Hex Approx. Weight
(Lbs.)
30200SS
(30-200SS) 		1/4" x 1/8" 1.42" 0.77" 0.44" 0.027
30201SS
(30-201SS) 		1/4" x 1/4" 1.61" 0.77" 0.56" 0.043
30203SS
(30-203SS) 		3/8" x 1/4" 1.76" 0.92" 0.56" 0.053
30204SS
(30-204SS) 		3/8" x 3/8" 1.76" 0.92" 0.69" 0.067
30206SS
(30-206SS) 		1/2" x 3/8" 1.86" 1.02" 0.69" 0.071
30207SS
(30-207SS) 		1/2" x 1/2" 2.07" 1.02" 0.88" 0.119
30215SS
(30-215SS) 		3/4" x 1/2" 2.55" 1.50" 0.88" 0.200
30210SS
(30-210SS) 		3/4" x 3/4" 2.55" 1.50" 1.06" 0.194
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
