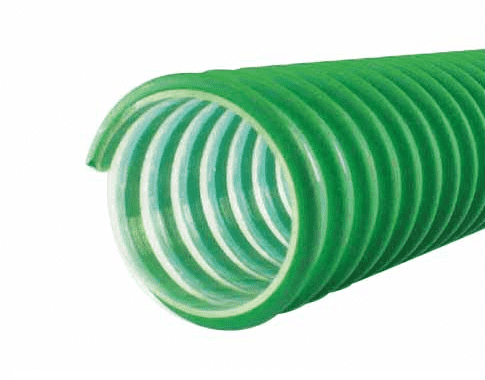

3021-0400-100 by Jason Industrial | 3021 Polyurethane Material Handling and Duct Hose | Green/Clear | 8 PSI | 4" ID | 4.48" OD | 100ft

3021-0400-100 by Jason Industrial | 3021 Polyurethane Material Handling and Duct Hose | Green/Clear | 8 PSI | 4" ID | 4.48" OD | 100ft

Save $361.35 Save $361.35
$1,264.72
$1,264.72 - $1,264.72
$1,264.72
$903.37
$903.37 - $903.37
$903.37

Jason Industrial Inc. Hose - Material Handling Hose - 3021 Polyurethane Material Handling and Duct Hose - Green/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3021-0400-100 Jason | 100 |
Series: 3021 Series
Hose Color(s): Green
Internal Diameter: 4in
Outer Diameter: 4.48in
Tubing Construction: Polyurethane
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Insulation blowing, fume removal, ducting, ventilation and dust collection. SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane Abrasion Resistant Tube
Reinforcement: Clockwise PVC Helix Cover: Clockwise PVC Helix
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Abrasion resistant PU
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Glo-Glide" external clockwise PVC helix
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3021-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 20 PSI 1.38 BAR 15.0 inHg 0.23 lb./ft. 0.34 KG/m 0.70" 17.80mm 100ft
3021-0200-100 2" 50.80mm 2.40" 60.96mm PVC Helix 15 PSI 1.03 BAR 12.0 inHg 0.32 lb./ft. 0.48 KG/m 1.37" 34.80mm 100ft
3021-0250-100 2-1/2" 63.50mm 2.90" 73.66mm PVC Helix 10 PSI 0.69 BAR 10.0 inHg 0.39 lb./ft. 0.58 KG/m 1.37" 34.80mm 100ft
3021-0300-100 3" 76.20mm 3.43" 87.12mm PVC Helix 10 PSI 0.69 BAR 10.0 inHg 0.55 lb./ft. 0.82 KG/m 2.25" 57.20mm 100ft
3021-0400-100 4" 101.60mm 4.48" 113.79mm PVC Helix 8 PSI 0.55 BAR 8.0 inHg 0.77 lb./ft. 1.15 KG/m 3.00" 76.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
