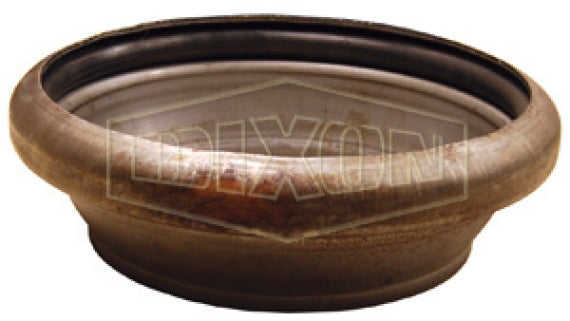

30212 Dixon Valve 12" Type B (Bauer Style) Quick Connect Fitting - Female with Gasket - Unplated Steel

30212 Dixon Valve 12" Type B (Bauer Style) Quick Connect Fitting - Female with Gasket - Unplated Steel

Save $111.77 Save $111.77
$279.42
$279.42 - $279.42
$279.42
$167.65
$167.65 - $167.65
$167.65

Quick Connect Fittings - Type B (Bauer Style) Female with Gasket - Unplated Steel On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.
Specifications for Variant SKU: 30212 Dixon
Shape (Orientation): No Orientation
Material(s): Steel
Applications:
  • Irrigation and suction lines.
Features:
  • Female and male fittings are commonly used for butt-welding to pipe.
  • The hot dipped, Galvanized quick connect fittings has a double pin locking lever for smooth closing action.
  • Type B (Bauer style) locks on the male side.
  • Each coupler is equipped with a safety pin to prevent accidental openings.
  • These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.
Part Number Size Material Weight (Lbs.)
3022 2" Unplated Steel 0.2700
3023 3" Unplated Steel 0.5650
3024 4" Unplated Steel 1.6600
3026 6" Unplated Steel 2.9700
3028 8" Unplated Steel 5.8500
30210 10" Unplated Steel 14.0000
30212 12" Unplated Steel 15.3600

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
