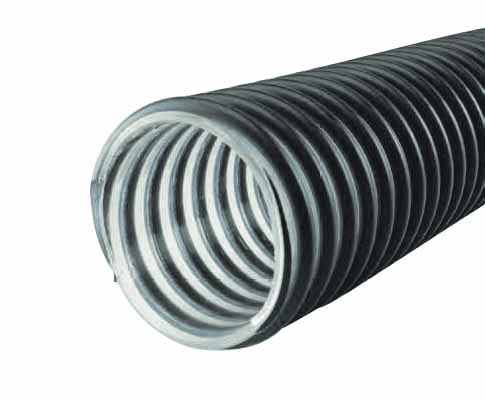

3022-0150-100 by Jason Industrial | 3022 Series | Medium Duty Lined Material Handling Hose | 30 PSI | 1-1/2" ID | 1.91" OD | Black/Clear | Polyurethane | 100ft

Save $3.33

$378.00

$378.00 - $378.00

$378.00

$374.67

$374.67 - $374.67

$374.67

Jason Industrial Inc. Hose - Material Handling Hose - 3022 Medium Duty Polyurethane Lined Material Handling Hose - Black/Clear

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 3022-0150-100 Jason \| 100 \|
Series:	3022 Series
Hose Color(s):	Black & Clear/Semi-Clear
Internal Diameter:	1.50in
Outer Diameter:	1.91in
Tubing Construction:	Polyurethane
Special Properties:	Conductive Hose Cover, Outer Helix Protection, Static Dissipating Cover

SPECIFICATIONS

Other Features:
Application:	Dust collection, dry fertilizer, plastic pellets or any dry medium abrasive requirements.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Medium Duty Abrasion Resistant Polyurethane Liner
Reinforcement:	Clockwise PVC Helix	Cover:	Static Dissipating PVC
Temperature Range:	-40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Abrasion resistant PU tube Clear visual flow -40 deg. F cold weather resistance Sub-zero flexibility Easy to drag with "Glo-Glide" external clockwise PVC helix Static dissipating PVC cover compound

Part Number	I.D.		O.D.		Reinforcement	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3022-0150-100	1-1/2"	38.10mm	1.91"	48.51mm	PVC Helix	30 PSI	2.07 BAR	24.0 inHg	0.29 lb./ft.	0.43 KG/m	1.37"	34.80mm	100ft
3022-0200-100	2"	50.80mm	2.46"	62.48mm	PVC Helix	25 PSI	1.72 BAR	22.0 inHg	0.40 lb./ft.	0.60 KG/m	2.50"	63.50mm	100ft
3022-0250-100	2-1/2"	63.50mm	2.90"	73.66mm	PVC Helix	20 PSI	1.38 BAR	19.0 inHg	0.54 lb./ft.	0.80 KG/m	2.50"	63.50mm	100ft
3022-0300-100	3"	76.20mm	3.53"	89.66mm	PVC Helix	20 PSI	1.38 BAR	18.0 inHg	0.68 lb./ft.	1.01 KG/m	4.00"	101.60mm	100ft
3022-0400-100	4"	101.60mm	4.57"	116.08mm	PVC Helix	15 PSI	1.03 BAR	13.0 inHg	1.01 lb./ft.	1.50 KG/m	6.00"	152.40mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
