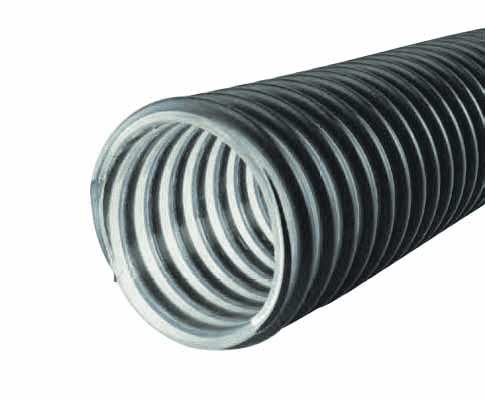

3022-0400-100 by Jason Industrial | 3022 Medium Duty Polyurethane Lined Material Handling Hose | Black/Clear | 15 PSI | 4" ID | 4.57" OD | 100ft

3022-0400-100 by Jason Industrial | 3022 Medium Duty Polyurethane Lined Material Handling Hose | Black/Clear | 15 PSI | 4" ID | 4.57" OD | 100ft

Save $637.07 Save $637.07
$2,229.75
$2,229.75 - $2,229.75
$2,229.75
$1,592.68
$1,592.68 - $1,592.68
$1,592.68

Jason Industrial Inc. Hose - Material Handling Hose - 3022 Medium Duty Polyurethane Lined Material Handling Hose - Black/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3022-0400-100 Jason | 100 |
Series: 3022 Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.57in
Tubing Construction: Polyurethane
Special Properties: Conductive Hose Cover, Outer Helix Protection, Static Dissipating Cover

SPECIFICATIONS

Application: Dust collection, dry fertilizer, plastic pellets or any dry medium abrasive requirements. SAE Rating: N/A
Other Ratings: N/A Tube: Medium Duty Abrasion Resistant Polyurethane Liner
Reinforcement: Clockwise PVC Helix Cover: Static Dissipating PVC
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Abrasion resistant PU tube
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Glo-Glide" external clockwise PVC helix
  • Static dissipating PVC cover compound
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3022-0150-100 1-1/2" 38.10mm 1.91" 48.51mm PVC Helix 30 PSI 2.07 BAR 24.0 inHg 0.29 lb./ft. 0.43 KG/m 1.37" 34.80mm 100ft
3022-0200-100 2" 50.80mm 2.46" 62.48mm PVC Helix 25 PSI 1.72 BAR 22.0 inHg 0.40 lb./ft. 0.60 KG/m 2.50" 63.50mm 100ft
3022-0250-100 2-1/2" 63.50mm 2.90" 73.66mm PVC Helix 20 PSI 1.38 BAR 19.0 inHg 0.54 lb./ft. 0.80 KG/m 2.50" 63.50mm 100ft
3022-0300-100 3" 76.20mm 3.53" 89.66mm PVC Helix 20 PSI 1.38 BAR 18.0 inHg 0.68 lb./ft. 1.01 KG/m 4.00" 101.60mm 100ft
3022-0400-100 4" 101.60mm 4.57" 116.08mm PVC Helix 15 PSI 1.03 BAR 13.0 inHg 1.01 lb./ft. 1.50 KG/m 6.00" 152.40mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
