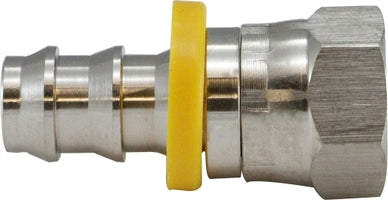

30234SS (30-234SS) Midland Push On Hose Barb - SAE/ JIC 45°/ 37° Female Swivel - 1/2" Hose ID x 1/2" Female BSPT - 316 Stainless Steel

30234SS by Midland | Push On Hose Barb | SAE/JIC 45°/37° Swivel | 1/2" Hose ID x 1/2" Female 45°/37° | 316 Stainless Steel

Save $33.91 Save $33.91
$84.77
$84.77 - $84.77
$84.77
$50.86
$50.86 - $50.86
$50.86

Midland Industries
Brass Fitting - Push On Barb Fitting - SAE/JIC 45°/37° Female Swivel

316 Stainless Steel
Specifications for Variant SKU: 30234SS Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-On Hose Barb, 1/2in Female JIC, 1/2in Female SAE 45 Flare
Material(s): 316 Stainless Steel

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: N/A


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Part Number Hose ID x Female 45°/37° A B Hex Approx. Weight
(Lbs.)
30230SS
(30-230SS) 		1/4" x 1/4" 1.48" 0.74" 0.56" 0.023
30234SS
(30-234SS) 		1/2" x 1/2" 1.93" 1.03" 0.88" 0.040
