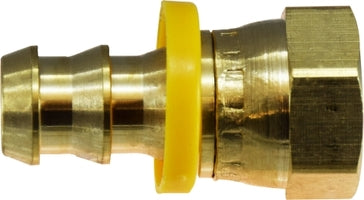

30236 (30-236) Midland Push On Hose Barb Fitting - SAE/JIC Dual 45°/37° Female Swivel - 3/4-16 UNF Thread - 5/8" Hose ID x 1/2" Dual Seat - Brass

30236 by Midland | Push On Hose Barb Fitting | SAE/JIC Dual 45°/37° Female Swivel | 3/4-16 UNF Thread | 5/8" Hose ID x 1/2" Dual Seat | Brass

Save $3.66 Save $3.66
$9.15
$9.15 - $9.15
$9.15
$5.49
$5.49 - $5.49
$5.49

Midland Industries
Brass Fitting - Push On Barb Fitting - SAE/JIC Dual 45°/37° Female Swivel
Specifications for Variant SKU: 30236 Midland
Shape (Orientation): Straight
Ends Configuration: 5/8in Push-On Hose Barb, 1/2in Female JIC, 1/2in Female SAE 45 Flare
Material(s): Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29PO5 129PO10 29FDS 287 HDF 309 735 690 P990-K 305 935/934
Part Number Hose ID x Dual Seat UNF Thread A B Hex Approx. Weight
(Lbs.)
30230
(30-230) 		1/4" x 1/4" 7/16-20 1.53" 0.87" 0.56" 0.06
30231
(30-231) 		1/4" x 5/16" 1/2-20 1.53" 0.87" 0.62" 0.04
30232
(30-232) 		5/16" x 5/16" 1/2-20 1.56" 0.87" 0.62" 0.04
30427
(30-427) 		3/8" x 5/16" 1/2-20 1.74" 0.87" 0.62" 0.06
30233
(30-233) 		3/8" x 1/2" 3/4-16 1.79" 0.97" 0.87" 0.10
30234
(30-234) 		1/2" x 1/2" 3/4-16 1.77" 0.97" 0.87" 0.10
30235
(30-235) 		1/2" x 5/8" 7/8-14 1.84" 0.97" 1.00" 0.12
30236
(30-236) 		5/8" x 1/2" 3/4-16 2.27" 1.45" 0.87" 0.18
30237
(30-237) 		5/8" x 5/8" 7/8-14 2.33" 1.45" 1.00" 0.14
30428
(30-428) 		3/4" x 5/8" 7/8-14 2.33" 1.45" 1.00" 0.20
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
