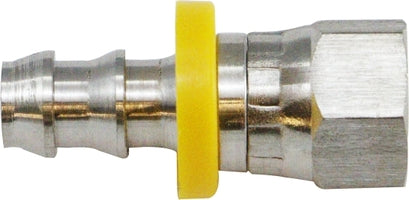

30269SS (30-269SS) Midland Push On Hose Barb - Female 37° JIC Flare Swivel - 3/4" Hose ID x 3/4" Female 37° JIC Flare - 316 Stainless Steel

30269SS by Midland | Push On Hose Barb | 37° JIC Flare Swivel | 3/4" Hose ID x 3/4" Female 37° JIC Flare | 316 Stainless Steel

Save $52.13 Save $52.13
$130.33
$130.33 - $130.33
$130.33
$78.20
$78.20 - $78.20
$78.20

Midland Industries
Brass Fitting - Push On Barb Fitting - Female 37° JIC Flare Swivel

316 Stainless Steel

Inventory @ Manufacturers Warehouse: 151 Units
Specifications for Variant SKU: 30269SS Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Push-On Hose Barb, 3/4in Female JIC
Material(s): 316 Stainless Steel

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: N/A


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Part Number Hose ID x Female 37° JIC Flare A B Hex Approx. Weight
(Lbs.)
30266SS
(30-266SS) 		3/8" x 3/8" 1.75" 0.92" 0.68" 0.065
30269SS
(30-269SS) 		3/4" x 3/4" 2.53" 1.50" 1.25" 0.259
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
