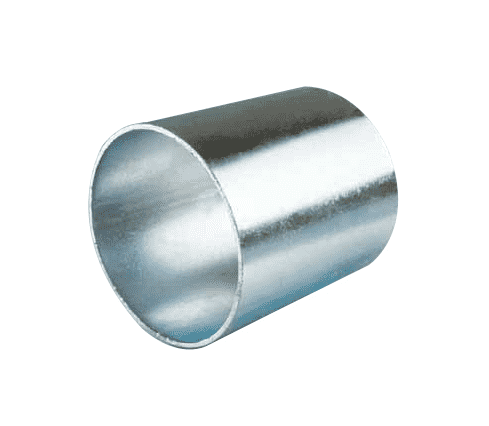

302S25P by Jason Industrial | Cam and Groove Crimp Sleeve | 2-1/2" Hose Size | 3-2/16" Sleeve ID | Plated Steel

302S25P by Jason Industrial | Cam and Groove Crimp Sleeve | 2-1/2" Hose Size | 3-2/16" Sleeve ID | Plated Steel

Save $3.07 Save $3.07
$10.75
$10.75 - $10.75
$10.75
$7.68
$7.68 - $7.68
$7.68

Jason Industrial Inc. Couplings & Accessories - Crimp Couplings / Ferrules / Sleeves - Cam & Groove - Crimp Sleeves - Plated Steel
Specifications for Variant SKU: 302S25P Jason
Shape (Orientation): No Orientation
Material(s): Plated Steel
Applications:
Other Components:
Safety Warnings:
  • Warning - Do not use in steam applications
  • Because the hose/coupling interface is critical to the hose assembly performance, always follow the specific instructions of the hose and coupling manufacturers regarding the match of hose/fittings and assembly procedures. Trained personnel using proper tools and procedures should make the hose assemblies. Failure to follow the manufacturers' instructions or failure to use trained personnel might be dangerous and could result in damage to property and serious bodily injury.
  • Please do not mix Jason Industrial couplings with other products.
Part Number Hose Size (ID) Sleeve ID Min. OD Max OD Sleeve Wall Thickness
in. mm in. mm in. mm
115S15P 1-1/2" 1-15/16" 1.796" 45.62mm 1.906" 48.41mm 0.06" 1.52mm
200S15P 1-1/2" 2" 1.922" 48.82mm 1.968" 49.99mm 0.06" 1.52mm
201S15P 1-1/2" 2-1/16" 1.984" 50.39mm 2.020" 51.31mm 0.06" 1.52mm
202S15P 1-1/2" 2-2/16" 2.046" 51.94mm 2.094" 53.19mm 0.06" 1.52mm
203S15P 1-1/2" 2-3/16" 2.110" 53.59mm 2.156" 54.76mm 0.06" 1.52mm
204S15P 1-1/2" 2-4/16" 2.172" 55.17mm 2.218" 56.34mm 0.06" 1.52mm
205S15P 1-1/2" 2-5/16" 2.224" 56.49mm 2.282" 57.96mm 0.06" 1.52mm
206S15P 1-1/2" 2-6/16" 2.296" 58.32mm 2.344" 59.54mm 0.06" 1.52mm
206S20P 2" 2-6/16" N/A N/A N/A N/A 0.06" 1.52mm
208S20P 2" 2-8/16" 2.360" 59.94mm 2.468" 62.69mm 0.06" 1.52mm
209S20P 2" 2-9/16" 2.484" 63.09mm 2.532" 64.31mm 0.06" 1.52mm
210S20P 2" 2-10/16" 2.546" 64.67mm 2.594" 65.89mm 0.06" 1.52mm
211S20P 2" 2-11/16" 2.610" 66.29mm 2.656" 67.46mm 0.06" 1.52mm
212S20P 2" 2-12/16" 2.672" 67.87mm 2.718" 69.04mm 0.06" 1.52mm
213S20P 2" 2-13/16" 2.734" 69.44mm 2.782" 70.66mm 0.06" 1.52mm
214S20P 2" 2-14/16" 2.796" 71.02mm 2.844" 72.24mm 0.06" 1.52mm
215S20P 2" 2-15/16" 2.860" 72.64mm 2.906" 73.81mm 0.06" 1.52mm
300S25P 2-1/2" 3" N/A N/A N/A N/A 0.06" 1.52mm
302S25P 2-1/2" 3-2/16" 2.984" 75.79mm 3.094" 78.59mm 0.06" 1.52mm
303S25P 2-1/2" 3-3/16" 3.110" 78.99mm 3.156" 80.16mm 0.06" 1.52mm
304S25P 2-1/2" 3-4/16" 3.172" 80.57mm 3.220" 81.79mm 0.06" 1.52mm
305S25P 2-1/2" 3-5/16" 3.234" 82.14mm 3.282" 83.36mm 0.06" 1.52mm
307S25P 2-1/2" 3-7/16" 3.300" 83.82mm 3.406" 86.51mm 0.06" 1.52mm
308S25P 2-1/2" 3-8/16" N/A N/A N/A N/A 0.06" 1.52mm
308S30P 3" 3-8/16" 3.360" 85.34mm 3.406" 86.51mm 0.09" 2.29mm
309S30P 3" 3-9/16" 3.422" 86.92mm 3.532" 89.71mm 0.09" 2.29mm
310S30P 3" 3-10/16" 3.546" 90.07mm 3.594" 91.29mm 0.09" 2.29mm
311S30P 3" 3-11/16" 3.610" 91.69mm 3.656" 92.86mm 0.09" 2.29mm
312S30P 3" 3-12/16" 3.672" 93.27mm 3.718" 94.44mm 0.09" 2.29mm
313S30P 3" 3-13/16" 3.734" 94.84mm 3.782" 96.06mm 0.09" 2.29mm
314S30P 3" 3-14/16" 3.796" 96.42mm 3.844" 97.64mm 0.09" 2.29mm
315S30P 3" 3-15/16" 3.860" 98.04mm 3.906" 99.21mm 0.09" 2.29mm
400S30P 3" 4" 3.922" 99.62mm 3.968" 100.79mm 0.09" 2.29mm
409S40P 4" 4-9/16" 4.422" 112.32mm 4.532" 115.11mm 0.09" 2.29mm
410S40P 4" 4-10/16" 4.546" 115.47mm 4.594" 116.69mm 0.09" 2.29mm
411S40P 4" 4-11/16" 4.610" 117.09mm 4.656" 118.26mm 0.09" 2.29mm
412S40P 4" 4-12/16" 4.672" 118.67mm 4.718" 119.84mm 0.09" 2.29mm
413S40P 4" 4-13/16" 4.734" 120.24mm 4.782" 121.46mm 0.09" 2.29mm
414S40P 4" 4-14/16" 4.796" 121.82mm 4.844" 123.04mm 0.09" 2.29mm
415S40P 4" 4-15/16" 4.860" 123.44mm 4.906" 124.61mm 0.09" 2.29mm
500S40P 4" 5" 4.922" 125.02mm 4.968" 126.19mm 0.09" 2.29mm
610S40P 4" 6-10/16" N/A N/A N/A N/A 0.09" 2.29mm
610S60P 6" 6-10/16" 6.422" 163.12mm 6.594" 167.49mm 0.12" 3.05mm
614S60P 6" 6-14/16" 6.610" 167.89mm 6.844" 173.84mm 0.12" 3.05mm
702S60P 6" 7-2/16" 6.860" 174.24mm 7.094" 180.19mm 0.12" 3.05mm
706S60P 6" 7-6/16" 7.110" 180.59mm 7.344" 186.54mm 0.12" 3.05mm
807S80P 8" 8-7/16" N/A N/A N/A N/A N/A N/A
808S80P 8" 8-8/16" N/A N/A N/A N/A N/A N/A
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
