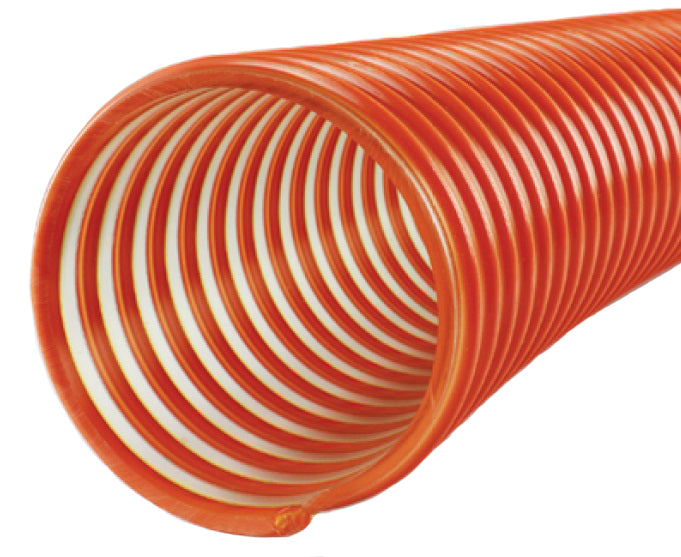

3030-0500-100 Jason Industrial 3030 PVC Mulch Resurfacing Hose - Orange/Clear - 30 PSI - 5" ID - 5.60" OD - 100ft

3030-0500-100 by Jason Industrial | 3030 PVC Mulch Resurfacing Hose | Orange/Clear | 30 PSI | 5" ID | 5.60" OD | 100ft

Save $409.25 Save $409.25
$1,432.37
$1,432.37 - $1,432.37
$1,432.37
$1,023.12
$1,023.12 - $1,023.12
$1,023.12

Jason Industrial Inc. Hose - Material Handling Hose - 3030 PVC Mulch Resurfacing Hose - Orange/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3030-0500-100 Jason | 100 |
Series: 3030 Series
Hose Color(s): Orange & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.60in
Tubing Construction: PVC
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Standard duty material handling hose to dispense mulch, bark, wood chips or for resurfacing and landscaping SAE Rating: N/A
Other Ratings: N/A Tube: Abrasion Resistant PVC
Reinforcement: Clockwise PVC Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Abrasion resistant PVC tube
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Glo-Glide" external clockwise PVC helix
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3030-0400-100 4" 101.60mm 4.55" 115.57mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 1.35 lb./ft. 2.01 KG/m 9.00" 228.60mm 100ft
3030-0500-100 5" 127.00mm 5.60" 142.24mm PVC Helix 30 PSI 2.07 BAR 24.0 inHg 1.75 lb./ft. 2.60 KG/m 10.00" 254.00mm 100ft
3030-0600-100 6" 152.40mm 6.79" 172.47mm PVC Helix 25 PSI 1.72 BAR 24.0 inHg 2.42 lb./ft. 3.60 KG/m 11.00" 279.40mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
