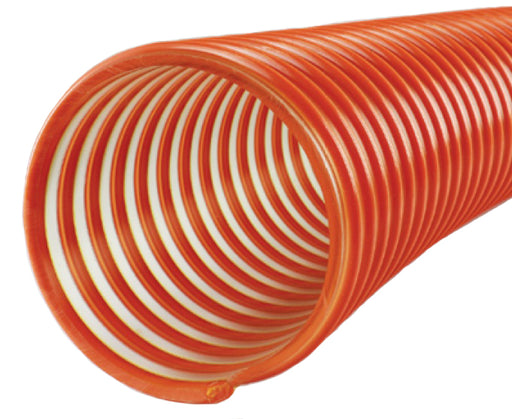

3030-0600-100 Jason Industrial 3030 PVC Mulch Resurfacing Hose - Orange/Clear - 25 PSI - 6" ID - 6.79" OD - 100ft

3030-0600-100 by Jason Industrial | 3030 PVC Mulch Resurfacing Hose | Orange/Clear | 25 PSI | 6" ID | 6.79" OD | 100ft

Save $14.27 Save $14.27
$1,407.60
$1,407.60 - $1,407.60
$1,407.60
$1,393.33
$1,393.33 - $1,393.33
$1,393.33

Jason Industrial Inc. Hose - Material Handling Hose - 3030 PVC Mulch Resurfacing Hose - Orange/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3030-0600-100 Jason | 100 |
Series: 3030 Series
Hose Color(s): Orange & Clear/Semi-Clear
Internal Diameter: 6in
Outer Diameter: 6.79in
Tubing Construction: PVC
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Standard duty material handling hose to dispense mulch, bark, wood chips or for resurfacing and landscaping SAE Rating: N/A
Other Ratings: N/A Tube: Abrasion Resistant PVC
Reinforcement: Clockwise PVC Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Abrasion resistant PVC tube
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Glo-Glide" external clockwise PVC helix
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3030-0400-100 4" 101.60mm 4.55" 115.57mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 1.35 lb./ft. 2.01 KG/m 9.00" 228.60mm 100ft
3030-0500-100 5" 127.00mm 5.60" 142.24mm PVC Helix 30 PSI 2.07 BAR 24.0 inHg 1.75 lb./ft. 2.60 KG/m 10.00" 254.00mm 100ft
3030-0600-100 6" 152.40mm 6.79" 172.47mm PVC Helix 25 PSI 1.72 BAR 24.0 inHg 2.42 lb./ft. 3.60 KG/m 11.00" 279.40mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
