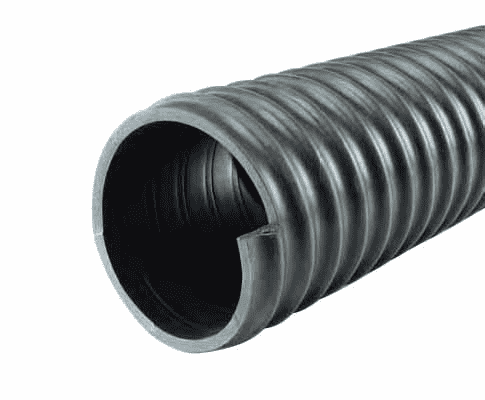

3035-0600-050 by Jason Industrial | 3035 Series | Abrasion Resistant Material Handling Hose | 30 PSI | 6" ID | 6.73" OD | Black | SBR | 50ft

3035-0600-050 by Jason Industrial | 3035 Series | Abrasion Resistant Material Handling Hose | 30 PSI | 6" ID | 6.73" OD | Black | SBR | 50ft

Save $705.93 Save $705.93
$2,470.75
$2,470.75 - $2,470.75
$2,470.75
$1,764.82
$1,764.82 - $1,764.82
$1,764.82

Jason Industrial Inc. Hose - Material Handling Hose - 3035 Abrasion Resistant SBR Material Handling Hose - Black

Package Quantity: 50 FT

Specifications for Variant SKU: 3035-0600-050 Jason | 50 |
Series: 3035 Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.73in
Tubing Construction: SBR
Cover Construction: SBR
Special Properties: Conductive Hose Cover, Conductive Tube, Outer Helix Protection, Static Dissipating Cover, Static Dissipating Tube

SPECIFICATIONS

Application: Abrasive suction for crushed rock, sand, dry fertilizer, small gravel and powdered cement. Can also be used as a boom hose for catch basin clean out SAE Rating: N/A
Other Ratings: N/A Tube: Abrasion Resistant SBR, Static Dissipating
Reinforcement: Clockwise PVC Helix Cover: Abrasion Resistant SBR, Static Dissipating
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Heavy-duty abrasion resistance
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • No ground wire is needed as the tube and cover compound are static dissipating
  • Lightweight
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3035-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 45 PSI 3.10 BAR 29.0 inHg 0.37 lb./ft. 0.55 KG/m 2.00" 50.80mm 100ft
3035-0200-100 2" 50.80mm 2.35" 59.69mm PVC Helix 40 PSI 2.76 BAR 29.0 inHg 0.50 lb./ft. 0.74 KG/m 2.50" 63.50mm 100ft
3035-0250-100 2-1/2" 63.50mm 2.95" 74.93mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 0.88 lb./ft. 1.31 KG/m 2.50" 63.50mm 100ft
3035-0300-100 3" 76.20mm 3.51" 89.15mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 1.10 lb./ft. 1.64 KG/m 3.00" 76.20mm 100ft
3035-0400-100 4" 101.60mm 4.63" 117.60mm PVC Helix 30 PSI 2.07 BAR 29.0 inHg 1.76 lb./ft. 2.62 KG/m 4.50" 114.30mm 100ft
3035-0500-100 5" 127.00mm 5.75" 146.05mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 2.47 lb./ft. 3.68 KG/m 5.00" 127.00mm 100ft
3035-0600-050 6" 152.40mm 6.73" 170.94mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.09 lb./ft. 4.60 KG/m 9.00" 228.60mm 50ft
3035-0600-100 6" 152.40mm 6.73" 170.94mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.09 lb./ft. 4.60 KG/m 9.00" 228.60mm 100ft
3035-0800-050 8" 203.20mm 9.04" 230.00mm PVC Helix 30 PSI 2.07 BAR 27.0 inHg 5.65 lb./ft. 8.40 KG/m 15.00" 381.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
