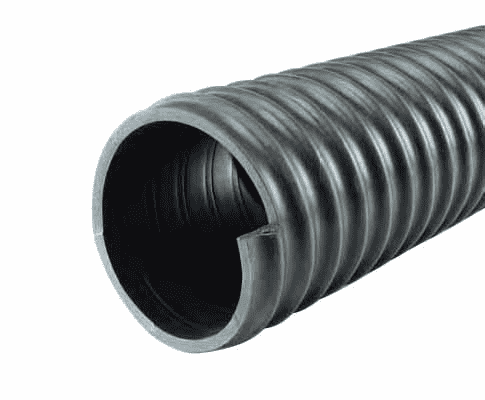

3035-0600-100 by Jason Industrial | 3035 Series | Abrasion Resistant Material Handling Hose | 30 PSI | 6" ID | 6.73" OD | Black | SBR | 100ft

3035-0600-100 by Jason Industrial | 3035 Series | Abrasion Resistant Material Handling Hose | 30 PSI | 6" ID | 6.73" OD | Black | SBR | 100ft

Save $34.19 Save $34.19
$3,395.52
$3,395.52 - $3,395.52
$3,395.52
$3,361.33
$3,361.33 - $3,361.33
$3,361.33

Jason Industrial Inc. Hose - Material Handling Hose - 3035 Abrasion Resistant SBR Material Handling Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 3035-0600-100 Jason | 100 |
Series: 3035 Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.73in
Tubing Construction: SBR
Cover Construction: SBR
Special Properties: Conductive Hose Cover, Conductive Tube, Outer Helix Protection, Static Dissipating Cover, Static Dissipating Tube

SPECIFICATIONS

Application: Abrasive suction for crushed rock, sand, dry fertilizer, small gravel and powdered cement. Can also be used as a boom hose for catch basin clean out SAE Rating: N/A
Other Ratings: N/A Tube: Abrasion Resistant SBR, Static Dissipating
Reinforcement: Clockwise PVC Helix Cover: Abrasion Resistant SBR, Static Dissipating
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Heavy-duty abrasion resistance
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • No ground wire is needed as the tube and cover compound are static dissipating
  • Lightweight
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3035-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 45 PSI 3.10 BAR 29.0 inHg 0.37 lb./ft. 0.55 KG/m 2.00" 50.80mm 100ft
3035-0200-100 2" 50.80mm 2.35" 59.69mm PVC Helix 40 PSI 2.76 BAR 29.0 inHg 0.50 lb./ft. 0.74 KG/m 2.50" 63.50mm 100ft
3035-0250-100 2-1/2" 63.50mm 2.95" 74.93mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 0.88 lb./ft. 1.31 KG/m 2.50" 63.50mm 100ft
3035-0300-100 3" 76.20mm 3.51" 89.15mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 1.10 lb./ft. 1.64 KG/m 3.00" 76.20mm 100ft
3035-0400-100 4" 101.60mm 4.63" 117.60mm PVC Helix 30 PSI 2.07 BAR 29.0 inHg 1.76 lb./ft. 2.62 KG/m 4.50" 114.30mm 100ft
3035-0500-100 5" 127.00mm 5.75" 146.05mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 2.47 lb./ft. 3.68 KG/m 5.00" 127.00mm 100ft
3035-0600-050 6" 152.40mm 6.73" 170.94mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.09 lb./ft. 4.60 KG/m 9.00" 228.60mm 50ft
3035-0600-100 6" 152.40mm 6.73" 170.94mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.09 lb./ft. 4.60 KG/m 9.00" 228.60mm 100ft
3035-0800-050 8" 203.20mm 9.04" 230.00mm PVC Helix 30 PSI 2.07 BAR 27.0 inHg 5.65 lb./ft. 8.40 KG/m 15.00" 381.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
