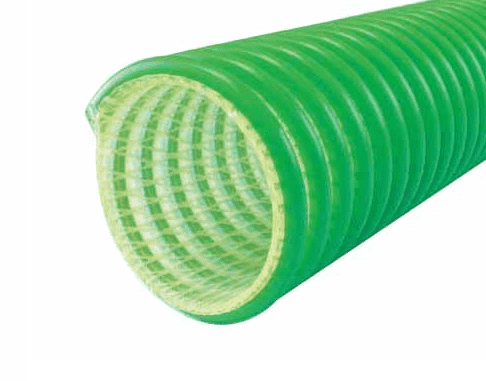

3040-0200-100 by Jason Industrial | 3040 Series | Drop Hose for Suction & Delivery Of Gasoline, Alternative Fuels | S-omega | 75 PSI | 2" ID | 2.46" OD | Green/Clear | Polyurethane | 100ft

Save $530.20

$1,855.69

$1,855.69 - $1,855.69

$1,855.69

$1,325.49

$1,325.49 - $1,325.49

$1,325.49

Jason Industrial Inc. Hose - Material Handling Hose - 3040 Polyurethane Drop Hose for Suction and Delivery Of Gasoline & Alternative Fuels - SΩ - Green/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3040-0200-100 Jason \| 100 \|
Series:	3040 Series
Hose Color(s):	Green
Internal Diameter:	2in
Outer Diameter:	2.46in
Tubing Construction:	Polyurethane
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Used in the delivery of biofuels, gasoline, kerosene and fuel oil	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane, Smooth Bore
Reinforcement:	Embedded SΩ Ground Wire, Clockwise PVC helix, Single Braid, High Tensile Polyester Yarn	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Higher transfer pressures Clear visual flow -40 deg. F cold weather resistance Sub-zero flexibility Easy to drag with "Go-Glide" external clockwise PVC helix SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity Vacuum up to 29" of Hg

Part Number	I.D.		O.D.		Reinforcement Braids	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3040-0200-100	2"	50.80mm	2.46"	62.48mm	1	75 PSI	5.17 BAR	29.0 inHg	0.63 lb./ft.	0.94 KG/m	4.00"	101.60mm	100ft
3040-0300-100	3"	76.20mm	3.78"	96.01mm	1	65 PSI	4.48 BAR	29.0 inHg	1.20 lb./ft.	1.79 KG/m	6.00"	152.40mm	100ft
3040-0400-100	4"	101.60mm	4.83"	122.68mm	1	65 PSI	4.48 BAR	29.0 inHg	1.71 lb./ft.	2.54 KG/m	8.00"	203.20mm	100ft

Note: Use JASON GREEN banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
