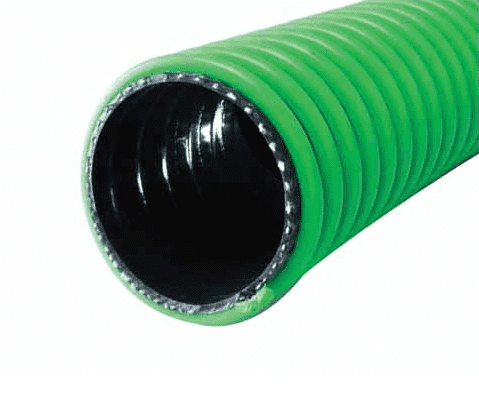

3045-0400-100 by Jason Industrial | 3045 Series | Drop Hose for Suction & Delivery of Gasoline, Alternative Fuels | S-omega | 65 PSI | 4" ID | 4.83" OD | Green/Black | Polyurethane | 100ft

Save $942.14

$3,297.48

$3,297.48 - $3,297.48

$3,297.48

$2,355.34

$2,355.34 - $2,355.34

$2,355.34

Jason Industrial Inc. Hose - Material Handling Hose - 3045 Polyurethane Drop Hose for Suction and Delivery Of Gasoline & Alternative Fuels - SΩ - Green/Black

Package Quantity: 100 FT

Specifications for Variant SKU: 3045-0400-100 Jason \| 100 \|
Series:	3045 Series
Hose Color(s):	Green
Internal Diameter:	4in
Outer Diameter:	4.83in
Tubing Construction:	Polyurethane
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Used in the delivery of biofuels, gasoline, kerosene and fuel oil	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane, Smooth Bore
Reinforcement:	Embedded SΩ Ground Wire, Clockwise PVC helix, Single Braid, High Tensile Polyester Yarn	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Higher transfer pressures -40 deg. F cold weather resistance Sub-zero flexibility Easy to drag with "Go-Glide" external clockwise PVC helix SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity Vacuum up to 29" of Hg

Part Number	I.D.		O.D.		Reinforcement Braids	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3045-0300-100	3"	76.20mm	3.78"	96.01mm	1	65 PSI	4.48 BAR	29.0 inHg	1.20 lb./ft.	1.79 KG/m	6.00"	152.40mm	100ft
3045-0400-100	4"	101.60mm	4.83"	122.68mm	1	65 PSI	4.48 BAR	29.0 inHg	1.71 lb./ft.	2.54 KG/m	8.00"	203.20mm	100ft

Note: Use JASON YELLOW banding sleeves only when securing coupling for 2", 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
