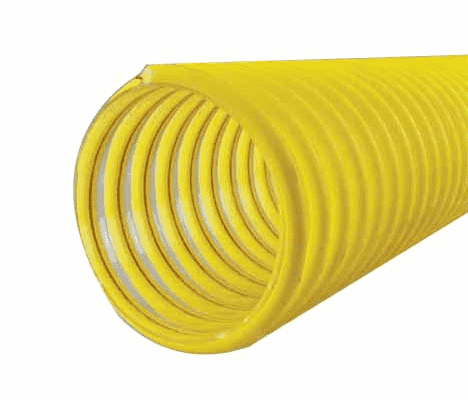

3050-0300-100 by Jason Industrial | 3050 Series | Gasoline & Alternative Fuel Vapor Recovery Hose | S-omega | 8 PSI | 3" ID | 3.54" OD | Yellow/Clear | Polyurethane | 100ft

3050-0300-100 by Jason Industrial | 3050 Series | Gasoline & Alternative Fuel Vapor Recovery Hose | S-omega | 8 PSI | 3" ID | 3.54" OD | Yellow/Clear | Polyurethane | 100ft

Save $9.55 Save $9.55
$1,010.88
$1,010.88 - $1,010.88
$1,010.88
$1,001.33
$1,001.33 - $1,001.33
$1,001.33

Jason Industrial Inc. Hose - Material Handling Hose - 3050 Polyurethane Gasoline & Alternative Fuel Vapor Recovery Hose - SΩ - Yellow/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3050-0300-100 Jason | 100 |
Series: 3050 Series
Hose Color(s): Yellow & Clear/Semi-Clear
Internal Diameter: 3in
Outer Diameter: 3.54in
Tubing Construction: Polyurethane
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Used to remove vapors from gasoline and alternative fuels to recovery system in tank truck operations SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Embedded SΩ Ground Wire, Clockwise PVC helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3050-0200-100 2" 50.80mm 2.45" 62.23mm PVC Helix 10 PSI 0.69 BAR 15.0 inHg 0.50 lb./ft. 0.74 KG/m 3.00" 76.20mm 100ft
3050-0300-100 3" 76.20mm 3.54" 89.92mm PVC Helix 8 PSI 0.55 BAR 15.0 inHg 0.79 lb./ft. 1.18 KG/m 4.00" 101.60mm 100ft
3050-0400-100 4" 101.60mm 4.57" 116.08mm PVC Helix 7 PSI 0.48 BAR 12.0 inHg 1.11 lb./ft. 1.65 KG/m 5.00" 127.00mm 100ft
Note: Use JASON GREEN banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
