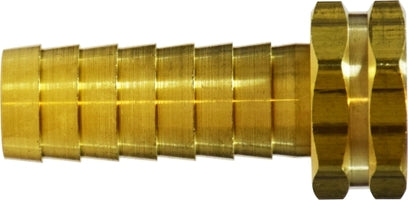

30506 (30-506) Midland Garden Hose Fitting - Female Swivel Only (2" Shank) - 5/8" Hose Barb x 3/4" Female GHT - Brass

30506 by Midland | Garden Hose Fitting | Female Swivel Only | 2" Shank | 5/8" Hose Barb x 3/4" Female GHT | Brass

Save $3.83

$9.58

$9.58 - $9.58

$9.58

$5.75

$5.75 - $5.75

$5.75

Midland Industries
Brass Fitting - Garden Hose Fitting - Female Swivel Only (2" Shank)

Washer Included

Inventory @ Manufacturers Warehouse: 53 Units

Quantity

Specifications for Variant SKU: 30506 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/8in Hose Barb, 3/4in Female GHT
Material(s):	Brass
Seal Material(s):	Rubber

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.

Crossover Series:
GHFL	594


Part Number	Hose Barb X Female GHT	A	B	Hex	Approx. Weight (Lbs.)
30505 (30-505)	1/2" x 3/4"	2.55"	2.04"	1.18	0.13
30506 (30-506)	5/8" x 3/4"	2.56"	2.04"	1.18	0.16
30507 (30-507)	3/4" x 3/4"	2.67"	2.04"	1.18	0.17
30508 (30-508)	1" x 1"	2.84"	2.03"	1.43	0.29

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
