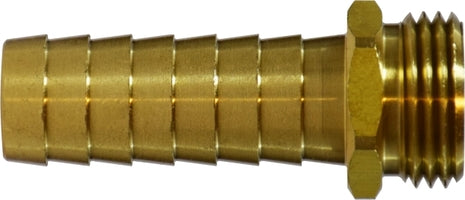

30511 (30-511) Midland Garden Hose Fitting - Male End Only (2" Shank) - 5/8" Hose Barb x 3/4" Male GHT - Brass

30511 by Midland | Garden Hose Fitting | Male End Only | 2" Shank | 5/8" Hose Barb x 3/4" Male GHT | Brass

Save $1.37

$12.29

$12.29 - $12.29

$12.29

$10.92

$10.92 - $10.92

$10.92

Midland Industries
Brass Fitting - Garden Hose Fitting - Male End Only (2" Shank)

Inventory @ Manufacturers Warehouse: 376 Units

Quantity

Specifications for Variant SKU: 30511 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/8in Hose Barb, 3/4in Male GHT
Material(s):	Brass

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.

Crossover Series:
GHML	593


Part Number	Hose Barb x Male GHT	A	B	Hex	Approx. Weight (Lbs.)
30510 (30-510)	1/2" x 3/4"	2.72"	2.04"	1.06	0.16
30511 (30-511)	5/8" x 3/4"	2.72"	2.04"	1.06	0.17
30512 (30-512)	3/4" x 3/4"	2.72"	2.04"	1.06	0.20
30513 (30-513)	1" x 1"	2.90"	2.03"	1.37	0.28

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
