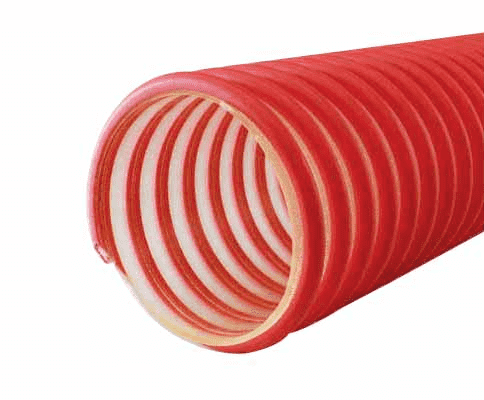

3053-0300-100 by Jason Industrial | 3053 Series | HD Gasoline & Alternative Fuel Vapor Recovery Hose | S-omega | 8 PSI | 3" ID | 3.57" OD | Red/Clear | Polyurethane | 100ft

Save $525.70

$1,839.96

$1,839.96 - $1,839.96

$1,839.96

$1,314.26

$1,314.26 - $1,314.26

$1,314.26

Jason Industrial Inc. Hose - Material Handling Hose - 3053 HD Polyurethane Gasoline and Alternative Fuel Vapor Recovery Hose - SΩ - Red/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3053-0300-100 Jason \| 100 \|
Series:	3053 Series
Hose Color(s):	Red & Clear/Semi-Clear
Internal Diameter:	3in
Outer Diameter:	3.57in
Tubing Construction:	Polyurethane
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Used to remove vapors from gasoline and alternative fuels to recovery system in tank truck and terminal operations	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Embedded SΩ Ground Wire, Clockwise PVC helix	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Clear visual flow -40 deg. F cold weather resistance Sub-zero flexibility Easy to drag with "Go-Glide" external clockwise PVC helix SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity

Part Number	I.D.		O.D.		Reinforcement	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3053-0300-100	3"	76.20mm	3.57"	90.68mm	PVC Helix	8 PSI	0.55 BAR	15.0 inHg	0.95 lb./ft.	1.41 KG/m	5.00"	127.00mm	100ft
3053-0400-100	4"	101.60mm	4.61"	117.09mm	PVC Helix	7 PSI	0.48 BAR	12.0 inHg	1.27 lb./ft.	1.89 KG/m	6.00"	152.40mm	100ft

Note: Use JASON YELLOW banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
