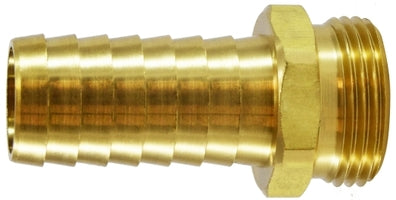

30572 (30-572) by Midland | Garden Hose Fitting | Male NPSM Long Shank | 3/4" Hose Barb x 3/4" Male NPSM Thread | Straight | Brass

Save $0.57

$5.12

$5.12 - $5.12

$5.12

$4.55

$4.55 - $4.55

$4.55

Midland Industries
Brass Fitting - Garden Hose Fitting - Male NPSM Long Shank

Inventory @ Manufacturers Warehouse: 472 Units

Quantity

Specifications for Variant SKU: 30572 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Male NPSM
Material(s):	Brass

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.


Part Number	Hose ID	Male NPSM Thread	A	B	Hex
30571 (30-571)	5/8"	3/4"	2.18"	1.50"	1.06
30572 (30-572)	3/4"	3/4"	2.18"	1.50"	1.06
30573 (30-573)	1"	1"	2.32"	1.53"	1.30
