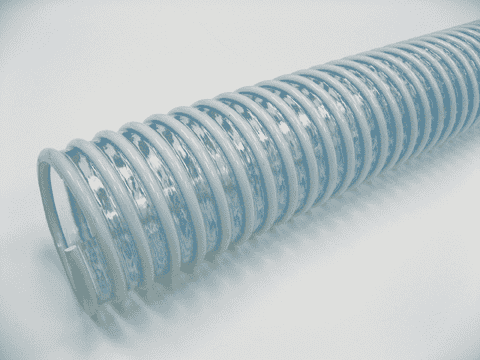

3074-0400-100 by Jason Industrial | 3074 Series | HD Sub-Zero Cold Weather Suction Hose | 21 PSI | 4" ID | 4.63" OD | White/Clear | PVC | 100ft

3074-0400-100 by Jason Industrial | 3074 Series | HD Sub-Zero Cold Weather Suction Hose | 21 PSI | 4" ID | 4.63" OD | White/Clear | PVC | 100ft

Save $346.08 Save $346.08
$1,211.28
$1,211.28 - $1,211.28
$1,211.28
$865.20
$865.20 - $865.20
$865.20

Jason Industrial Inc. Hose - Water Hose - 3074 HD Sub-Zero Cold Weather Clear PVC Suction Hose - White/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3074-0400-100 Jason | 100 |
Series: 3074 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.63in
Tubing Construction: PVC
Special Properties: Outer Helix Protection
Application: Heavy duty water suction and transfer for rental, construction and trash pumps in sub-zero weather conditions SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Clockwise PVC Helix Cover: N/A
Temperature Range: -40 deg F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3074-0100-100 1" 25.40mm 1.22" 30.99mm PVC Helix 43 PSI 2.97 BAR 29.0 inHg 0.15 lb./ft. 0.22 KG/m 2.00" 50.80mm 100ft
3074-0125-100 1-1/4" 31.75mm 1.48" 37.59mm PVC Helix 36 PSI 2.48 BAR 29.0 inHg 0.18 lb./ft. 0.27 KG/m 2.50" 36.50mm 100ft
3074-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 36 PSI 2.48 BAR 29.0 inHg 0.28 lb./ft. 0.42 KG/m 2.50" 63.50mm 100ft
3074-0200-100 2" 50.80mm 2.35" 59.69mm PVC Helix 36 PSI 2.48 BAR 29.0 inHg 0.44 lb./ft. 0.65 KG/m 3.00" 76.20mm 100ft
3074-0250-100 2-1/2" 63.50mm 2.87" 72.90mm PVC Helix 28 PSI 1.93 BAR 29.0 inHg 0.60 lb./ft. 0.89 KG/m 5.00" 127.00mm 100ft
3074-0300-100 3" 76.20mm 3.50" 88.90mm PVC Helix 28 PSI 1.93 BAR 29.0 inHg 0.85 lb./ft. 1.26 KG/m 6.00" 152.40mm 100ft
3074-0400-100 4" 101.60mm 4.63" 117.60mm PVC Helix 21 PSI 1.45 BAR 29.0 inHg 1.34 lb./ft. 1.99 KG/m 9.00" 228.60mm 100ft
3074-0500-100 5" 127.00mm 5.63" 143.00mm PVC Helix 21 PSI 1.45 BAR 28.0 inHg 2.20 lb./ft. 3.27 KG/m 10.00" 254.00mm 100ft
3074-0600-100 6" 152.40mm 6.73" 170.94mm PVC Helix 21 PSI 1.45 BAR 28.0 inHg 2.72 lb./ft. 4.05 KG/m 11.00" 279.40mm 100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
