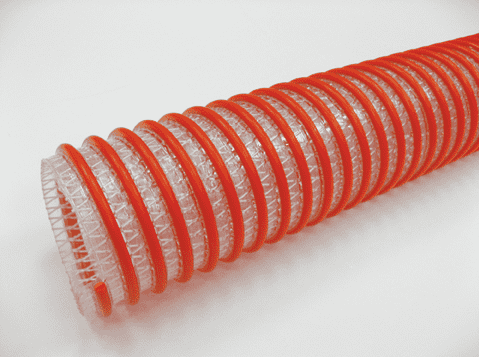

3076-0250-100 by Jason Industrial | 3076 Series | Heavy-duty Suction & Transfer Hose | 100 PSI | 2-1/2" ID | 3.01" OD | Orange/Clear | PVC | 100ft

3076-0250-100 by Jason Industrial | 3076 Series | Heavy-duty Suction & Transfer Hose | 100 PSI | 2-1/2" ID | 3.01" OD | Orange/Clear | PVC | 100ft

Save $237.10 Save $237.10
$829.86
$829.86 - $829.86
$829.86
$592.76
$592.76 - $592.76
$592.76

Jason Industrial Inc. Hose - Water Hose - 3076 Heavy-Duty PVC Suction & Transfer Hose - Orange/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3076-0250-100 Jason | 100 |
Series: 3076 Series
Hose Color(s): Orange & Clear/Semi-Clear
Internal Diameter: 2.50in
Outer Diameter: 3.01in
Tubing Construction: PVC
Special Properties: Outer Helix Protection
Application: HD fish suction and transfer, HD water suction and transfer for rental, construction, and trash pumps SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Clockwise PVC Helix, High Tensile Strength Polyester Yarn Cover: N/A
Temperature Range: -13 deg F (-25 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow
  • Higher transfer pressures
  • Excellent flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3076-0150-100 1-1/2" 38.10mm 2.03" 51.56mm 1 110 PSI 7.58 BAR 29.0 inHg 0.47 lb./ft. 0.70 KG/m 2.50" 63.50mm 100ft
3076-0200-100 2" 50.80mm 2.60" 66.04mm 1 100 PSI 6.89 BAR 29.0 inHg 0.69 lb./ft. 1.03 KG/m 4.00" 101.60mm 100ft
3076-0250-100 2-1/2" 63.50mm 3.01" 76.45mm 1 100 PSI 6.89 BAR 29.0 inHg 0.74 lb./ft. 1.10 KG/m 5.00" 127.00mm 100ft
3076-0300-100 3" 76.20mm 3.70" 93.98mm 1 100 PSI 6.89 BAR 28.0 inHg 1.13 lb./ft. 1.68 KG/m 6.00" 152.40mm 100ft
3076-0400-100 4" 101.60mm 4.78" 121.41mm 1 80 PSI 5.52 BAR 28.0 inHg 1.74 lb./ft. 2.59 KG/m 7.00" 177.80mm 100ft
3076-0500-100 5" 127.00mm 6.04" 153.42mm 1 80 PSI 5.52 BAR 28.0 inHg 2.99 lb./ft. 4.45 KG/m 9.00" 228.60mm 100ft
3076-0600-100 6" 152.40mm 7.17" 182.12mm 1 70 PSI 4.83 BAR 28.0 inHg 2.99 lb./ft. 4.45 KG/m 9.00" 228.60mm 100ft
Note: Discharge pressures and vacuum are temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
