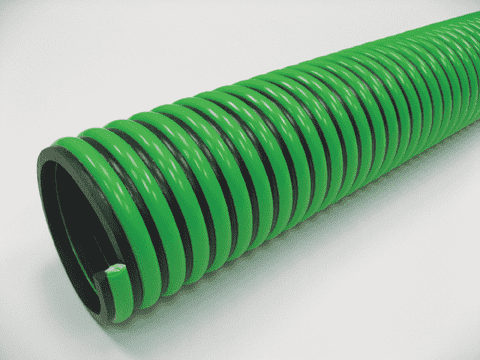

3080-0300-100 by Jason Industrial | 3080 Series | Suction Hose | 45 PSI | 3" ID | 3.52" OD | Green/Black | EPDM | 100ft

3080-0300-100 by Jason Industrial | 3080 Series | Suction Hose | 45 PSI | 3" ID | 3.52" OD | Green/Black | EPDM | 100ft

Save $262.85 Save $262.85
$919.98
$919.98 - $919.98
$919.98
$657.13
$657.13 - $657.13
$657.13

Jason Industrial Inc. Hose - Water Hose - 3080 EPDM Suction Hose - Green/Black

Package Quantity: 100 FT

Specifications for Variant SKU: 3080-0300-100 Jason | 100 |
Series: 3080 Series
Hose Color(s): Black & Green
Internal Diameter: 3in
Outer Diameter: 3.52in
Tubing Construction: EPDM
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Septic, Waste Water and Liquid Manure Handling, Agricultural Liquid Fertilizers, Standard Duty Water Suction, Suction and Transfer for Rental, Construction and Trash Pumps SAE Rating: N/A
Other Ratings: N/A Tube: EPDM
Reinforcement: Polyethylene, Clockwise Helix Cover: N/A
Temperature Range: -40 deg F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Mild EPDM chemical resistance
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Clockwise polyethylene helix
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3080-0150-100 1-1/2" 38.10mm 1.85" 46.99mm PE Helix 50 PSI 3.45 BAR 29.0 inHg 0.41 lb./ft. 0.61 KG/m 3.80" 96.50mm 100ft
3080-0200-100 2" 50.80mm 2.43" 61.72mm PE Helix 50 PSI 3.45 BAR 29.0 inHg 0.67 lb./ft. 1.00 KG/m 5.50" 139.70mm 100ft
3080-0300-100 3" 76.20mm 3.52" 89.41mm PE Helix 45 PSI 3.10 BAR 29.0 inHg 1.10 lb./ft. 1.64 KG/m 7.50" 190.50mm 100ft
3080-0400-100 4" 101.60mm 4.60" 116.84mm PE Helix 38 PSI 2.62 BAR 29.0 inHg 1.84 lb./ft. 2.74 KG/m 11.50" 292.10mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
