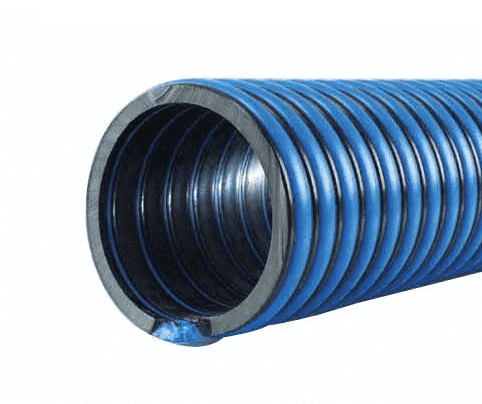

3085-0300-100 by Jason Industrial | 3085 Series | Oilfield Clean-up & Spill Recovery Hose | 45 PSI | 3" ID | 3.52" OD | 100ft

3085-0300-100 by Jason Industrial | 3085 Series | Oilfield Clean-up & Spill Recovery Hose | 45 PSI | 3" ID | 3.52" OD | 100ft

Save $289.50 Save $289.50
$1,013.24
$1,013.24 - $1,013.24
$1,013.24
$723.74
$723.74 - $723.74
$723.74

Jason Industrial Inc. Hose - Material Handling Hose - 3085 Oilfield Clean-up & Spill Recovery Hose - Blue/Black

Package Quantity: 100 FT

Specifications for Variant SKU: 3085-0300-100 Jason | 100 |
Series: 3085 Series
Hose Color(s): Blue
Internal Diameter: 3in
Outer Diameter: 3.52in
Tubing Construction: Nitrile/PVC Blend
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Great for the recovery of waste crude oil, diesel fuel and salt water. Used for cleaning up tank bottoms and oil spills SAE Rating: N/A
Other Ratings: N/A Tube: NBR/PVC
Reinforcement: Clockwise PVC helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • NBR/PVC tube is oil and gas resistant
  • Very flexible and easy to handle
  • All sizes are full vacuum
  • Cold weather resistant
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3085-0200-100 2" 50.80mm 2.43" 61.72mm PVC Helix 50 PSI 3.45 BAR 29.0 inHg 0.67 lb./ft. 1.00 KG/m 4.00" 101.60mm 100ft
3085-0300-100 3" 76.20mm 3.52" 89.41mm PVC Helix 45 PSI 3.10 BAR 29.0 inHg 1.10 lb./ft. 1.64 KG/m 6.00" 152.40mm 100ft
3085-0400-100 4" 101.60mm 4.60" 116.84mm PVC Helix 38 PSI 2.62 BAR 29.0 inHg 1.84 lb./ft. 2.74 KG/m 8.20" 208.30mm 100ft
Note:Vacuum is temperature dependent. Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
