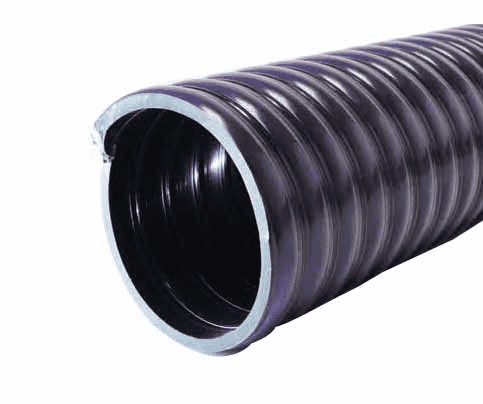

3087-0200-100 by Jason Industrial | 3087 Series | Safety Oilfield Clean-up & Recovery Hose | S-omega | 50 PSI | 2" ID | 2.43" OD | Black | NBR/PVC | 100ft

Save $239.20

$837.20

$837.20 - $837.20

$837.20

$598.00

$598.00 - $598.00

$598.00

Jason Industrial Inc. Hose - Material Handling Hose - 3087 Safety Oilfield Clean-up & Recovery Hose - SΩ - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 3087-0200-100 Jason \| 100 \|
Series:	3087 Series
Hose Color(s):	Black
Internal Diameter:	2in
Outer Diameter:	2.43in
Tubing Construction:	Nitrile/PVC Blend
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Great for the recovery of waste crude oil, diesel fuel and salt water. Used for cleaning up tank bottoms and oil spills	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	NBR/PVC
Reinforcement:	Clockwise PVC helix, SΩ Ground Wire	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
NBR/PVC tube is oil and gas resistant Very flexible and easy to handle All sizes are full vacuum Cold weather resistant SΩ ground prevents build-up of static electricity.

Part Number	I.D.		O.D.		Reinforcement	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3087-0200-100	2"	50.80mm	2.43"	61.72mm	PVC Helix	50 PSI	3.45 BAR	29.0 inHg	0.67 lb./ft.	1.00 KG/m	4.00"	101.60mm	100ft
3087-0300-100	3"	76.20mm	3.52"	89.41mm	PVC Helix	45 PSI	3.10 BAR	29.0 inHg	1.10 lb./ft.	1.64 KG/m	6.00"	152.40mm	100ft
3087-0400-100	4"	101.60mm	4.60"	116.84mm	PVC Helix	38 PSI	2.62 BAR	29.0 inHg	1.84 lb./ft.	2.74 KG/m	8.20"	208.30mm	100ft

Note:Vacuum is temperature dependent. SΩ = Safety OHM Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
