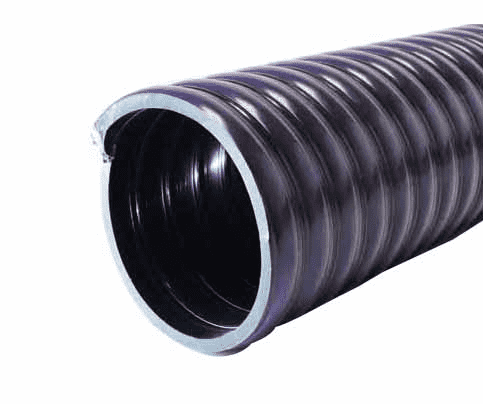

3087-0300-100 by Jason Industrial | 3087 Series | Safety Oilfield Clean-up & Recovery Hose | S-omega | 45 PSI | 3" ID | 3.52" OD | Black | NBR/PVC | 100ft

3087-0300-100 by Jason Industrial | 3087 Series | Safety Oilfield Clean-up & Recovery Hose | S-omega | 45 PSI | 3" ID | 3.52" OD | Black | NBR/PVC | 100ft

Save $358.35 Save $358.35
$1,254.23
$1,254.23 - $1,254.23
$1,254.23
$895.88
$895.88 - $895.88
$895.88

Jason Industrial Inc. Hose - Material Handling Hose - 3087 Safety Oilfield Clean-up & Recovery Hose - SΩ - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 3087-0300-100 Jason | 100 |
Series: 3087 Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.52in
Tubing Construction: Nitrile/PVC Blend
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Great for the recovery of waste crude oil, diesel fuel and salt water. Used for cleaning up tank bottoms and oil spills SAE Rating: N/A
Other Ratings: N/A Tube: NBR/PVC
Reinforcement: Clockwise PVC helix, SΩ Ground Wire Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • NBR/PVC tube is oil and gas resistant
  • Very flexible and easy to handle
  • All sizes are full vacuum
  • Cold weather resistant
  • SΩ ground prevents build-up of static electricity.
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3087-0200-100 2" 50.80mm 2.43" 61.72mm PVC Helix 50 PSI 3.45 BAR 29.0 inHg 0.67 lb./ft. 1.00 KG/m 4.00" 101.60mm 100ft
3087-0300-100 3" 76.20mm 3.52" 89.41mm PVC Helix 45 PSI 3.10 BAR 29.0 inHg 1.10 lb./ft. 1.64 KG/m 6.00" 152.40mm 100ft
3087-0400-100 4" 101.60mm 4.60" 116.84mm PVC Helix 38 PSI 2.62 BAR 29.0 inHg 1.84 lb./ft. 2.74 KG/m 8.20" 208.30mm 100ft
Note:Vacuum is temperature dependent. SΩ = Safety OHM Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
