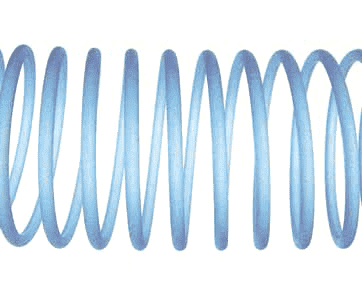

3098-0300 by Jason Industrial | FDA Banding Coil | Clockwise | Fits 3" Hose ID | Coil Length: 8" | PVC

Save $3.48

$12.18

$12.18 - $12.18

$12.18

$8.70

$8.70 - $8.70

$8.70

Jason Industrial Inc. Couplings & Accessories - Accessories - Banding Coils - FDA PVC

Specifications for Variant SKU: 3098-0300 Jason
Shape (Orientation):	No Orientation
Material(s):	PVC

Application:
Clockwise coils allow for a better coupling securing surface on the hose O.D.
Features:
Made with clear FDA PVC, 3098 can be used on any thermoplastic cover compound. Fits high profile clockwise O.D. corrugations for a smooth coupling securing surface. Fits low profile clockwise O.D. corrugations for a slightly raised coupling securing surface. Cut one length in half to accomodate both ends of one hose assembly.
Construction:
Clear FDA PVC
Safety Warnings:
Please do not mix Jason Industrial couplings with other products.

Part Number	Fits Hose ID		Coil Length
	in.	mm	in.	mm
3098-0150	1-1/2"	38.1mm	6"	152.4mm
3098-0200	2"	50.8mm	7"	177.8mm
3098-0250	2-1/2"	63.5mm	8"	203.2mm
3098-0300	3"	76.2mm	8"	203.2mm
3098-0400	4"	101.6mm	9"	228.6mm
3098-0500	5"	127.0mm	10"	254.0mm
3098-0600	6"	152.4mm	14"	355.6mm

Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
