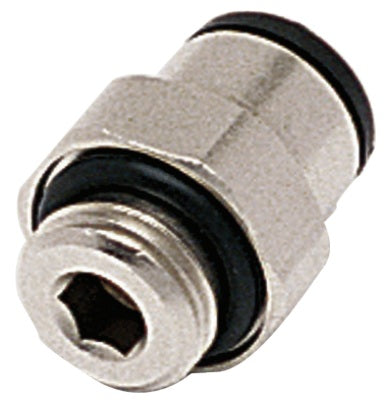

31010613 by Dixon Valve | Metric Push-In Fitting | Male Connector | 6mm Tube OD x 1/4 Male BSPP | Nickel Plated Brass

31010613 by Dixon Valve | Metric Push-In Fitting | Male Connector | 6mm Tube OD x 1/4 Male BSPP | Nickel Plated Brass

Save $4.50 Save $4.50
$11.25
$11.25 - $11.25
$11.25
$6.75
$6.75 - $6.75
$6.75

Dixon Valve & Coupling
Metric Push-In Fitting | Male Connector | Tube End x Male BSPP

Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
Specifications for Variant SKU: 31010613 Dixon
Shape (Orientation): Straight
Ends Configuration: 6mm Push-to-Connect, 1/4in Male BSPP
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Internal hex allows ease of assembly in tight places.
Construction:
  • Polypropylene release button
  • Nickel-plated brass threads
  • Silicone free
  • Nitrile Rubber D-seal
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Specifications:
  • Temperature Range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
  • Pressure Rating: 290 PSI at 70°F (21°C)
Part Number Tube O.D. Male Thread
31010419 4mm M5
31010410 4mm 1/8 BSPP
31010619 6mm M5
31010610 6mm 1/8 BSPP
31010613 6mm 1/4 BSPP
31010810 8mm 1/8 BSPP
31010813 8mm 1/4 BSPP
31011013 10mm 1/4 BSPP

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
