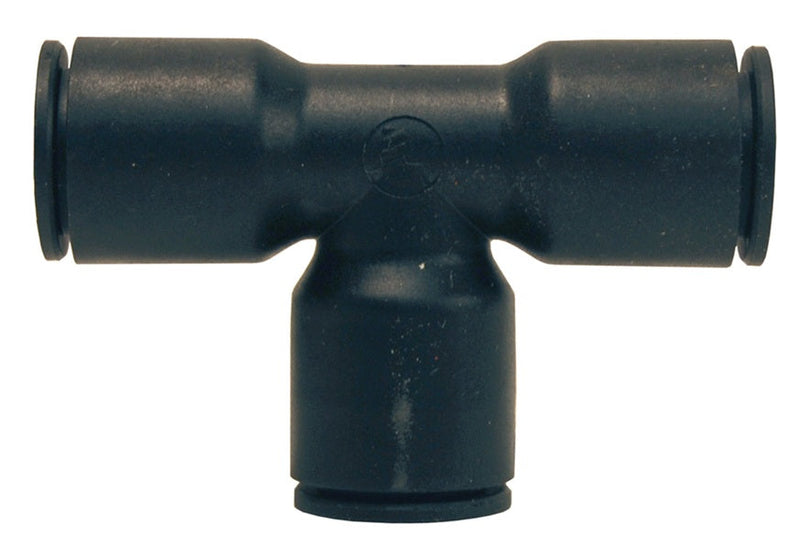

31040400 by Dixon Valve | Legris Push-In Fitting | Union Tee | 5/32" Tube OD | Nylon

Name: 31040400 by Dixon Valve | Legris Push-In Fitting | Union Tee | 5/32" Tube OD | Nylon
Brand: Dixon
SKU: 31040400 Dixon
Price: 6.15 USD
Availability: InStock

Save $4.10

$10.25

$10.25 - $10.25

$10.25

$6.15

$6.15 - $6.15

$6.15

Dixon Valve & Coupling
Legris Push-In Fitting | Union Tee | Tube End x Tube End x Tube End

Specifications for Variant SKU: 31040400 Dixon
Brand:	Legris
Shape (Orientation):	Tee
Ends Configuration:	5/32in Push-To-Connect, 5/32in Push-To-Connect, Some Ends Match
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Use:
Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube. Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing.
Construction:
Black body is glass-filled nylon. Nitrile Rubber D seal. Polypropylene release button. Silicone free.
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
Maximum circuit pressure depends equally on the type and diameter of the tube used. Pressure rating given at ambient temperature 70°F/21°C.

Part Number	Tube O.D. Ends
31045300	1/8"
31040400	5/32"
31045600	1/4"
31040800	5/16"
31046000	3/8"
31046200	1/2"
