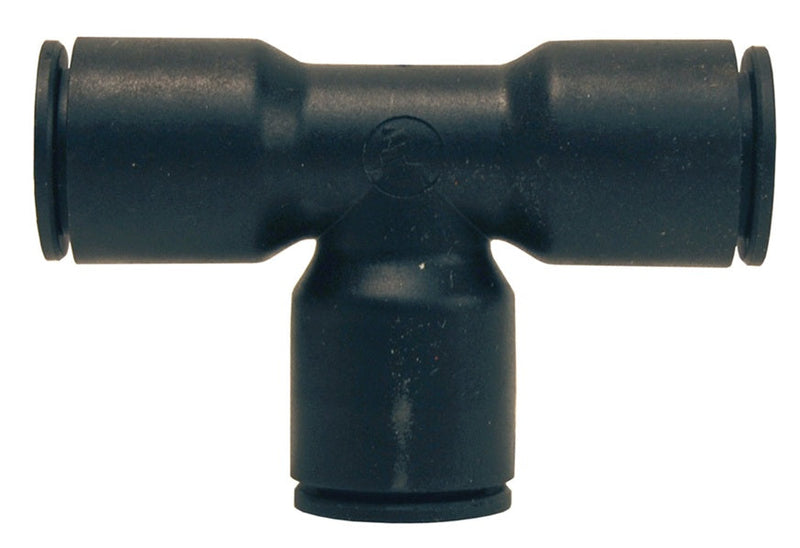

31046200 by Dixon Valve | Legris Push-In Fitting | Union Tee | 1/2" Tube OD | Nylon

31046200 by Dixon Valve | Legris Push-In Fitting | Union Tee | 1/2" Tube OD | Nylon

Save $9.46 Save $9.46
$23.65
$23.65 - $23.65
$23.65
$14.19
$14.19 - $14.19
$14.19

Dixon Valve & Coupling
Legris Push-In Fitting | Union Tee | Tube End x Tube End x Tube End
Specifications for Variant SKU: 31046200 Dixon
Brand: Legris
Shape (Orientation): Tee
Ends Configuration: 1/2in Push-To-Connect, 1/2in Push-To-Connect, Some Ends Match
Material(s): Nylon, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
Construction:
  • Black body is glass-filled nylon.
  • Nitrile Rubber D seal.
  • Polypropylene release button.
  • Silicone free.
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Pressure rating given at ambient temperature 70°F/21°C.
Part Number Tube O.D. Ends
31045300 1/8"
31040400 5/32"
31045600 1/4"
31040800 5/16"
31046000 3/8"
31046200 1/2"
