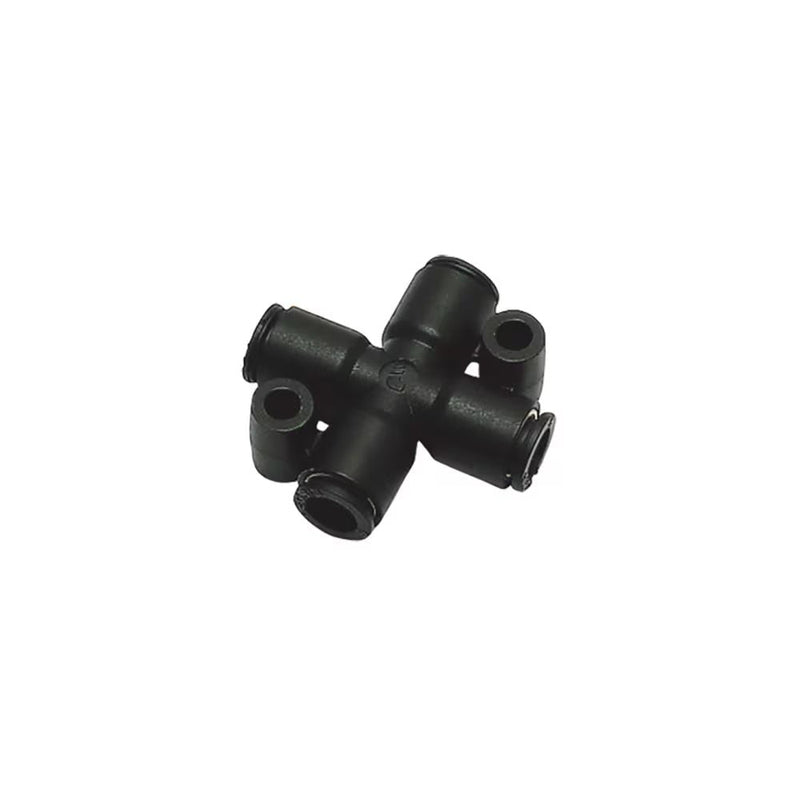

3107 08 06 by Parker | Legris Push-In Fitting | 6 mm Push-to-Connect x 6 mm Push-to-Connect x 8 mm Push-to-Connect | 46 mm Length | Cross | Polymer | Pack of 10

Save $18.33

$138.86

$138.86 - $138.86

$138.86

$120.53

$120.53 - $120.53

$120.53

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3107 Equal and Unequal Cross

Package Quantity: 10 Units

Specifications for Variant SKU: 3107 08 06 Parker \| 10 \|
Brand:	LF 3000®
Series:	3107 Series
Shape (Orientation):	Cross
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	ØD1	ØD2	G	H	N	ØT	Kg
3107 04 00	4 mm	4 mm	4 mm	11 mm	36 mm	20 mm	4.2 mm	.014 Kg
3107 04 06	6 mm	4 mm	6 mm	11 mm	36 mm	20 mm	4.2 mm	.009 Kg
3107 06 04	4 mm	4 mm	6 mm	11 mm	36 mm	20 mm	4.2 mm	.011 Kg
3107 06 00	6 mm	6 mm	6 mm	11 mm	36 mm	20 mm	4.2 mm	.005 Kg
3107 06 08	8 mm	6 mm	8 mm	11 mm	46 mm	22.5 mm	4.2 mm	.022 Kg
3107 08 06	6 mm	6 mm	8 mm	13.5 mm	46 mm	22.5 mm	4.2 mm	.022 Kg
3107 08 00	8 mm	8 mm	8 mm	13.5 mm	46 mm	22.5 mm	4.2 mm	.009 Kg
