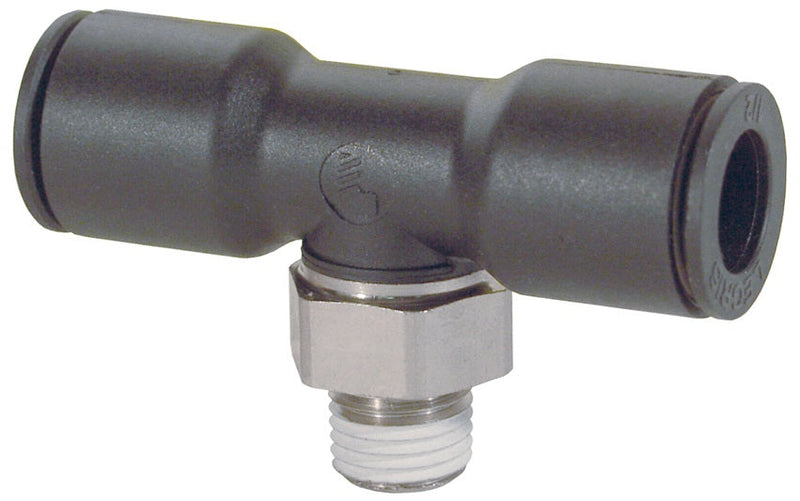

31085311 by Dixon Valve | Legris Push-In Fitting | Male Branch Tee | 1/8" Tube OD x 1/8" Male NPT x 1/8" Tube OD | Nylon / Nickel-Plated Brass

31085311 by Dixon Valve | Legris Push-In Fitting | Male Branch Tee | 1/8" Tube OD x 1/8" Male NPT x 1/8" Tube OD | Nylon / Nickel-Plated Brass

Save $0.80 Save $0.80
$8.52
$8.52 - $8.52
$8.52
$7.72
$7.72 - $7.72
$7.72

Dixon Valve & Coupling
Legris Push-In Fitting | Male Branch Tee | Tube End x Male NPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.

NOTE: Body is orientable for positioning purposes.
Specifications for Variant SKU: 31085311 Dixon
Brand: Legris
Shape (Orientation): Tee
Ends Configuration: 1/8in Push-to-Connect, 1/8in Male NPT
Material(s): Nylon, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant on all tapered male pipe threads.
Construction:
  • Nickel-plated brass threads.
  • Black body is glass-filled nylon.
  • Nitrile Rubber D seal.
  • Polypropylene release button.
  • Silicone free.
Specifications:
  • Working pressure: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Pressure rating given at ambient temperature 70°F/21°C.
Part Number Tube O.D. Ends Male Threads (Branch)
31085320 1/8" 10-32 Male UNF Straight Thread (Supplied with Gasket)
31085311 1/8" 1/8" Male NPT
31080420 5/32" 10-32 Male UNF Straight Thread (Supplied with Gasket)
31080411 5/32" 1/8" Male NPT
31080414 5/32" 1/4" Male NPT
31085611 1/4" 1/8" Male NPT
31085614 1/4" 1/4" Male NPT
31085618 1/4" 3/8" Male NPT
31080811 5/16" 1/8" Male NPT
31080814 5/16" 1/4" Male NPT
31080818 5/16" 3/8" Male NPT
31086011 3/8" 1/8" Male NPT
31086014 3/8" 1/4" Male NPT
31086018 3/8" 3/8" Male NPT
31086022 3/8" 1/2" Male NPT
31086214 1/2" 1/4" Male NPT
31086218 1/2" 3/8" Male NPT
31086222 1/2" 1/2" Male NPT
