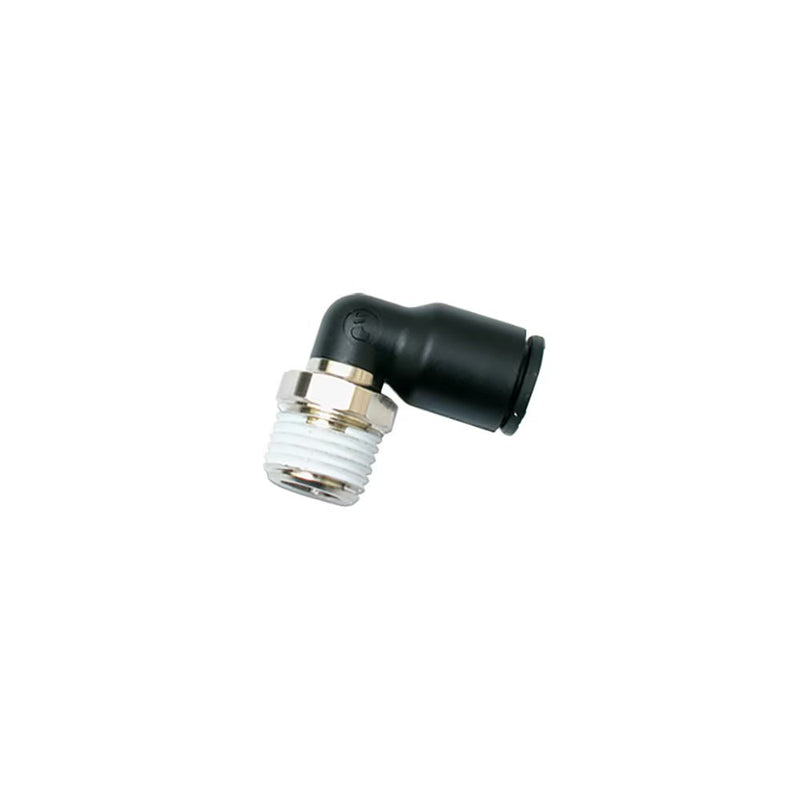

3109 04 14 by Parker | Legris Stud Fitting | 4mm Push-to-Connect x 1/4" Male Swivel NPT Thread | 14mm Hex | 90° Elbow | Polymer | Pack of 10

Save $12.02

$78.95

$78.95 - $78.95

$78.95

$66.93

$66.93 - $66.93

$66.93

10 items | $6.69 each

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3109 Stud Elbow, Male NPT Thread

Specifications for Variant SKU: 3109 04 14 Parker \| 10 \|
Brand:	LF 3000®
Series:	3109 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	Kg
3109 04 20	5/32"	10-32	8 mm	.33"	.53"	.55"	.006 Kg
3109 04 11	4 mm	1/8"	11 mm	8.4 mm	13.5 mm	14 mm	.007 Kg
3109 04 14	4 mm	1/4"	14 mm	8.4 mm	14 mm	14 mm	.016 Kg
3109 06 11	6 mm	1/8"	11 mm	10.5 mm	15.5 mm	16 mm	.007 Kg
3109 06 14	6 mm	1/4"	14 mm	10.5 mm	16 mm	16 mm	.016 Kg
3109 08 11	8 mm	1/8"	11 mm	13.5 mm	19 mm	23.1 mm	.009 Kg
3109 08 14	8 mm	1/4"	14 mm	13.5 mm	18 mm	23.1 mm	.009 Kg
3109 08 18	5/16"	3/8"	18 mm	.53"	.73"	.91"	.021 Kg
3109 10 14	10 mm	1/4"	15 mm	16 mm	23 mm	26.5 mm	.017 Kg
3109 10 18	10 mm	3/8"	18 mm	16 mm	22 mm	26.5 mm	.023 Kg
3109 10 22	10 mm	1/2"	22 mm	16 mm	23 mm	26.5 mm	.046 Kg
3109 12 22	12 mm	1/2"	22 mm	19 mm	26 mm	31 mm	.048 Kg

Pre-coated thread

The body swivels for positioning purposes.
