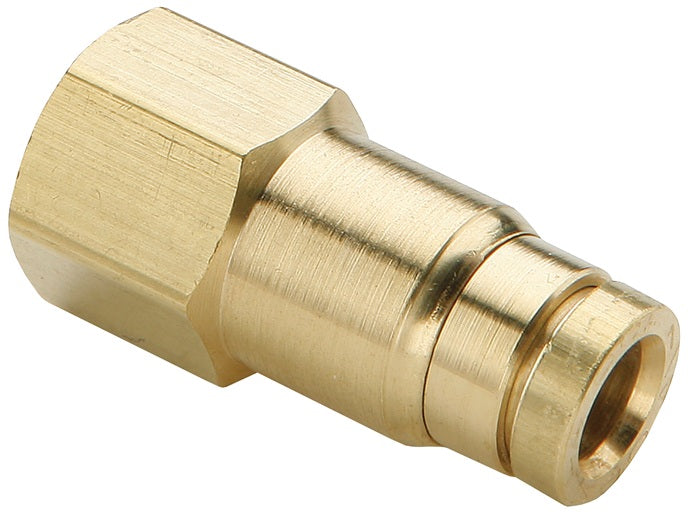

31140411DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Female Connector | 1/8" Female NPT x 5/32" Tube OD | Composite/Brass

31140411DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Female Connector | 1/8" Female NPT x 5/32" Tube OD | Composite/Brass

Save $8.17 Save $8.17
$20.42
$20.42 - $20.42
$20.42
$12.25
$12.25 - $12.25
$12.25

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Female Connector | Female NPT x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Specifications for Variant SKU: 31140411DOT Dixon
Shape (Orientation): Straight
Ends Configuration: 5/32in Push-to-Connect, 1/8in Female NPT
Material(s): Brass, Plastic
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body
  • Brass collet
  • Stainless steel tube support
  • Brass threads
  • Nitrile Rubber seal
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • Complies with the performance requirements of D.O.T FMVSS 571.106 (SAE J1131) and SAE J2494-3
  • Meets D.O.T. FMVSS 571.106, SAE J2494 and SAE J2494-3; 5/32" and 3/16" have a black button
Part Number Tube O.D. Female NPT
31140411DOT 5/32" 1/8"
31145511DOT 3/16" 1/8"
31145611DOT 1/4" 1/8"
31145614DOT 1/4" 1/4"
31146014DOT 3/8" 1/4"
31146018DOT 3/8" 3/8"
