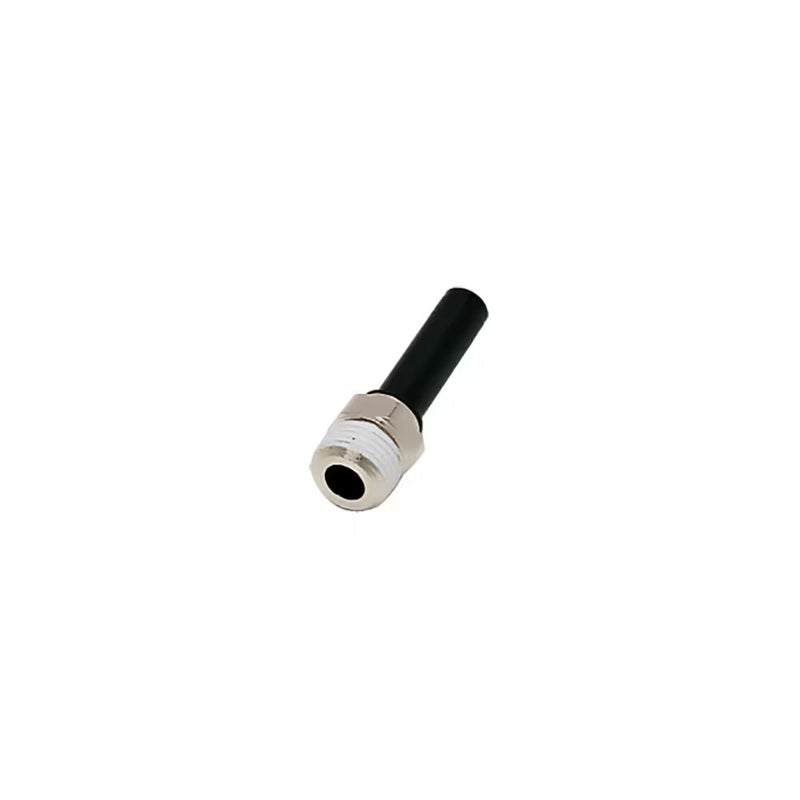

3121 04 11 by Parker | LF3000® Push-to-Connect Fittings | 5/32" Standpipe x 1/8" Male NPT Thread | 11 mm Hex | Straight | Nickel-Plated Brass

3121 04 11 by Parker | LF3000® Push-to-Connect Fittings | 5/32" Standpipe x 1/8" Male NPT Thread | 11mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $25.03 Save $25.03
$62.58
$62.58 - $62.58
$62.58
$37.55
$37.55 - $37.55
$37.55

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3121 - male standpipe fractional inch – NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3121 04 11 Parker | 10 |
Series: 3121 Series
Shape (Orientation): Straight
Material(s): Nylon, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD NPT (C) E H H1 Oz
3121 04 11 5/32" 1/8" 11 mm 1.02" .57" .26 Oz
3121 04 14 5/32" 1/4" 14 mm 1.04" .59" .59 Oz
3121 56 11 1/4" 1/8" 11 mm 1.18" .61" .28 Oz
3121 56 14 1/4" 1/4" 14 mm 1.12" .57" .49 Oz
3121 08 11 5/16" 1/8" 11 mm 1.16" .43" .28 Oz
3121 08 14 5/16" 1/4" 14 mm 1.12" .39" .49 Oz
3121 60 11 3/8" 1/8" 15 mm 1.75" .65" .45 Oz
3121 60 14 3/8" 1/4" 15 mm 1.42" .67" .59 Oz
3121 60 18 3/8" 3/8" 17 mm 1.42" .61" .80 Oz
3121 62 18 1/2" ./8" 17 mm 1.44" .37" .90 Oz
3121 62 22 1/2" 1/2" 21 mm 1.46" .39" 1.63 Oz
