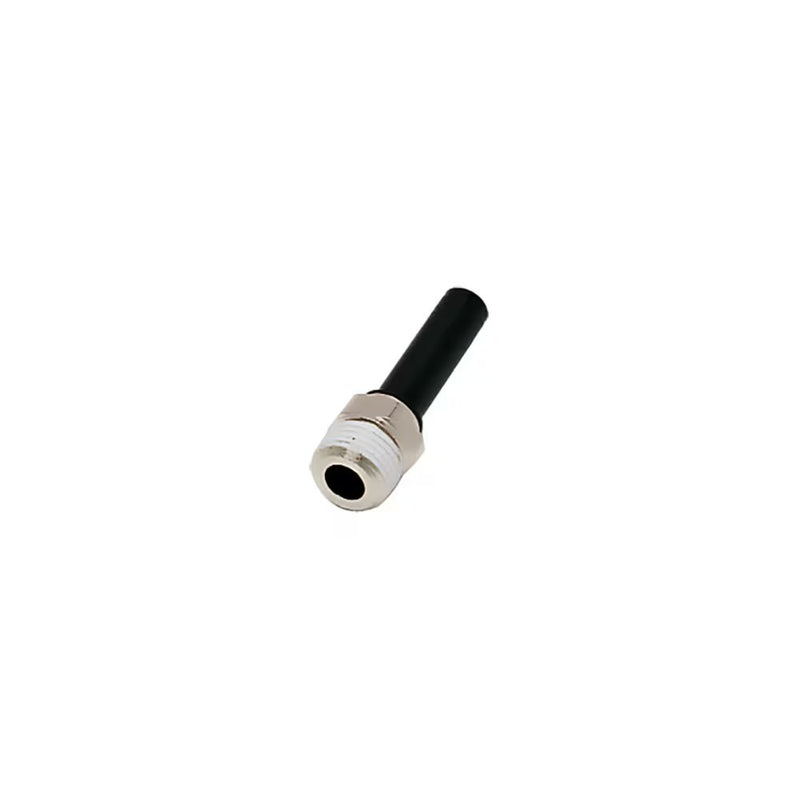

3121 08 14 by Parker | LF3000® Push-to-Connect Fittings | 5/16" Standpipe x 1/4" Male NPT Thread | 14mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $11.35

$55.48

$55.48 - $55.48

$55.48

$44.13

$44.13 - $44.13

$44.13

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3121 - male standpipe fractional inch – NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3121 08 14 Parker \| 10 \|
Series:	3121 Series
Shape (Orientation):	Straight
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28" Hg


Part Number	ØD	NPT (C)	E	H	H1	Oz
3121 04 11	5/32"	1/8"	11 mm	1.02"	.57"	.26 Oz
3121 04 14	5/32"	1/4"	14 mm	1.04"	.59"	.59 Oz
3121 56 11	1/4"	1/8"	11 mm	1.18"	.61"	.28 Oz
3121 56 14	1/4"	1/4"	14 mm	1.12"	.57"	.49 Oz
3121 08 11	5/16"	1/8"	11 mm	1.16"	.43"	.28 Oz
3121 08 14	5/16"	1/4"	14 mm	1.12"	.39"	.49 Oz
3121 60 11	3/8"	1/8"	15 mm	1.75"	.65"	.45 Oz
3121 60 14	3/8"	1/4"	15 mm	1.42"	.67"	.59 Oz
3121 60 18	3/8"	3/8"	17 mm	1.42"	.61"	.80 Oz
3121 62 18	1/2"	./8"	17 mm	1.44"	.37"	.90 Oz
3121 62 22	1/2"	1/2"	21 mm	1.46"	.39"	1.63 Oz
