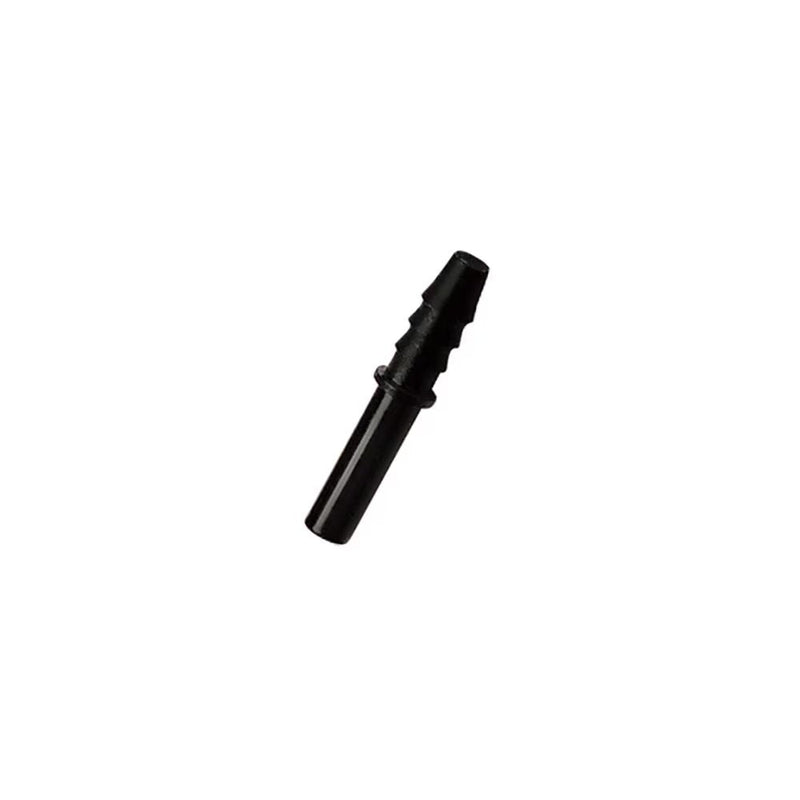

3122 12 10 by Parker | Legris Plug-In Fittings | 12 mm Tube Stem x 10 mm Barb | 48.5 mm Length | Straight | Polymer | Pack of 10

Save $26.40

$66.00

$66.00 - $66.00

$66.00

$39.60

$39.60 - $39.60

$39.60

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3122 Plug-In Barb Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 3122 12 10 Parker \| 10 \|
Brand:	LF 3000®
Series:	3122 Series
Shape (Orientation):	Straight
Material(s):	Polymer
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD1	ØD2	ØD3	L	L1	L2	Kg
3122 04 53	4 mm	3.2 mm	-	37 mm	25 mm	17 mm	.004 Kg
3122 04 05	4 mm	5 mm	-	37 mm	25 mm	17 mm	.001 Kg
3122 06 05	6 mm	5 mm	-	39 mm	25 mm	17 mm	.001 Kg
3122 08 56	8 mm	6.3 mm	-	39.5 mm	21 mm	17 mm	.001 Kg
3122 08 08	8 mm	8 mm	-	44.5 mm	26 mm	22 mm	.001 Kg
3122 10 56	10 mm	6.3 mm	-	45 mm	24.5 mm	17 mm	.002 Kg
3122 10 08	10 mm	8 mm	-	50 mm	39.5 mm	22 mm	.002 Kg
3122 12 08	12 mm	8 mm	-	50 mm	26 mm	22 mm	.004 Kg
3122 12 10	12 mm	10 mm	-	48.5 mm	25.5 mm	22.5 mm	.002 Kg
3122 12 62	12 mm	12.5 mm	-	57 mm	32 mm	27.5 mm	.004 Kg
3122 14 62	14 mm	12.5 mm	-	62 mm	35 mm	27.5 mm	.006 Kg
3122 56 55*	1/4"	3/16"	.27"	1.65"	1.00"	.67"	.006 Kg
3122 60 08	3/8"	.32"	.39"	1.97"	1.16"	.87"	.004 Kg
