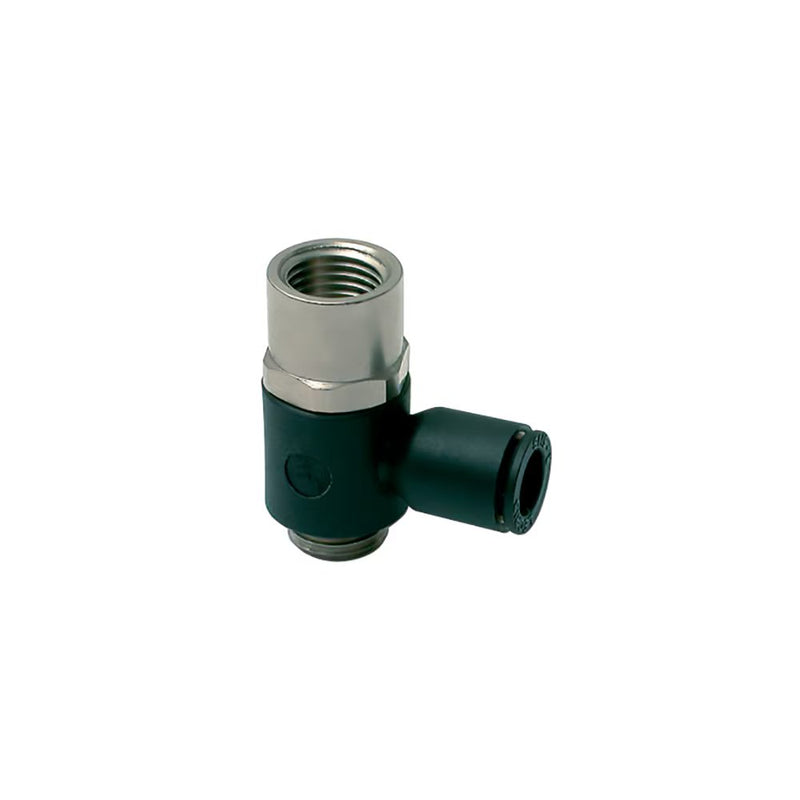

3124 04 10 by Parker | Legris Banjo Fittings | 4 mm Push-to-Connect x 1/8" Male/Female BSPP Thread | 29.5 mm Length | Banjo | Polymer

3124 04 10 by Parker | Legris Banjo Fittings | 4 mm Push-to-Connect x 1/8" Male/Female BSPP Thread | 29.5 mm Length | Banjo | Polymer | Pack of 10

Save $93.43 Save $93.43
$233.57
$233.57 - $233.57
$233.57
$140.14
$140.14 - $140.14
$140.14

by Parker Hannifin
Banjo Fittings:3124 - banjo with female BSPP bolt metric tube to BSPP or M5

Package Quantity: 10 Units

Specifications for Variant SKU: 3124 04 10 Parker | 10 |
Series: 3124 Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F G H L1 L Kg
3124 04 10 4 mm 1/4" 4 mm 13 mm 8.5 mm 25.5 mm 7 mm 18.5 mm .012 Kg
3124 06 13 6 mm 1/4" 5.5 mm 17 mm 10.5 mm 33 mm 9 mm 22 mm .031 Kg
3124 08 17 8 mm 3/8" 5.5 mm 20 mm 13.5 mm 37.5 mm 11 mm 29 mm .043 Kg

This product family was developed to allow assembly of a function fitting on a cylinder
