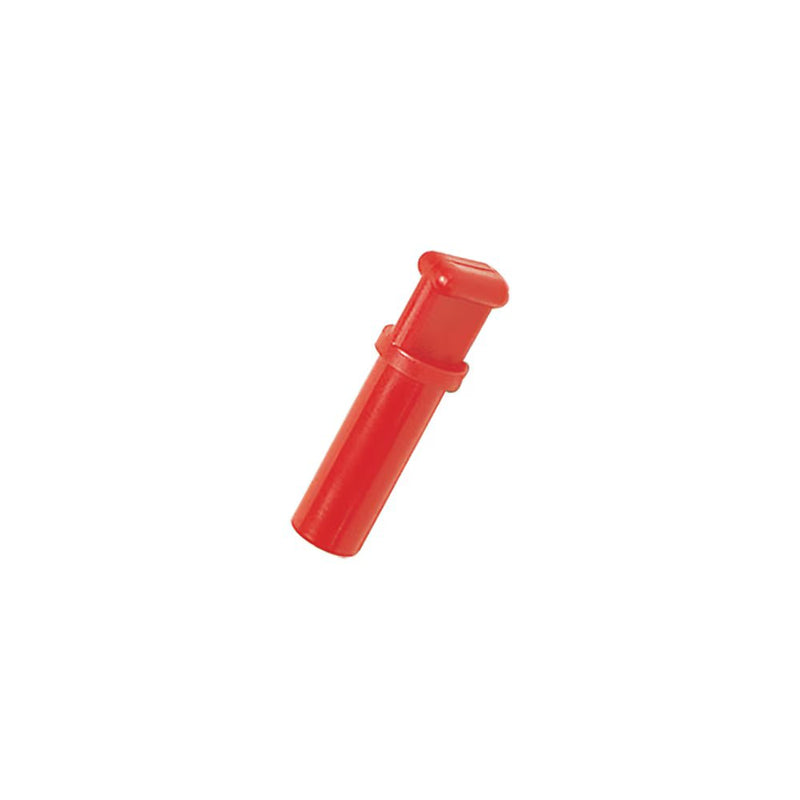

3126 16 00 by Parker | Legris Plug-In Fittings | 16 mm Stem | 57 mm Length | Polymer | Pack of 5

Save $17.98

$127.05

$127.05 - $127.05

$127.05

$109.07

$109.07 - $109.07

$109.07

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3126 Blanking Plug

Package Quantity: 5 Units

Specifications for Variant SKU: 3126 16 00 Parker \| 5 \|
Brand:	LF 3000®
Series:	3126 Series
Shape (Orientation):	No Orientation
Material(s):	Nickel-Plated Brass
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	G	L	L1	Kg
3126 03 00	3 mm	6 mm	25 mm	13.5 mm	.001 Kg
3126 04 00	4 mm	4 mm	30 mm	15.5 mm	.001 Kg
3126 06 00	6 mm	8 mm	33 mm	16.5 mm	.001 Kg
3126 08 00	8 mm	10 mm	35 mm	17.5 mm	.001 Kg
3126 10 00	10 mm	12 mm	42 mm	21 mm	.002 Kg
3126 12 00	12 mm	14 mm	45 mm	22 mm	.003 Kg
3126 14 00	14 mm	16 mm	49 mm	23.5 mm	.005 Kg
3126 16 00*	16 mm	19 mm	57 mm	30.5 mm	.064 Kg

*Nickel-plated brass

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
