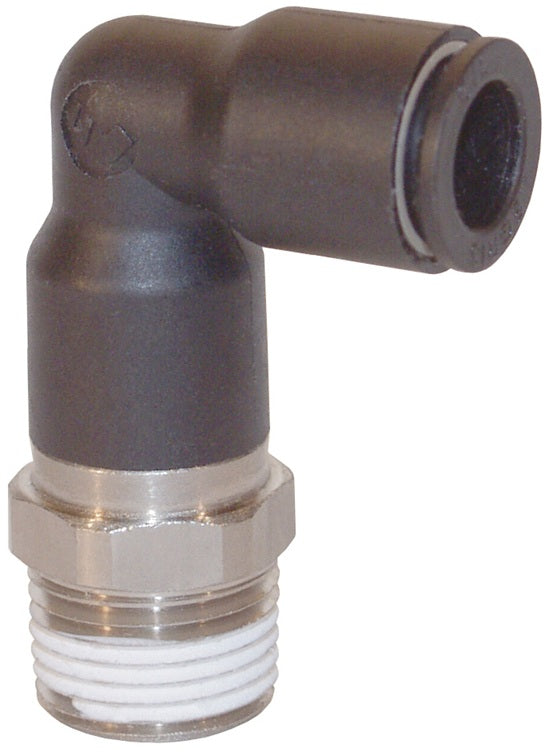

31296018 by Dixon Valve | Legris Push-In Fitting | Extended Male Connector | 90° Elbow | 3/8" Tube OD x 3/8" Male NPT | Nylon / Nickel-Plated Brass

Save $1.69

$17.90

$17.90 - $17.90

$17.90

$16.21

$16.21 - $16.21

$16.21

Dixon Valve & Coupling
Legris Push-In Fitting | Extended Male Connector | 90° Elbow | Male NPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.

NOTE: Body is orientable for positioning purposes.

Quantity

Specifications for Variant SKU: 31296018 Dixon
Brand:	Legris
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Push-to-Connect, 3/8in Male NPT
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Use:
Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube. Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing. Pre-applied thread sealant on all tapered male pipe threads.
Construction:
Nickel-plated brass threads. Black body is glass-filled nylon. Nitrile Rubber D seal. Polypropylene release button. Silicone free.
Specifications:
Working pressure: 290 PSI at ambient temperature Temperature range: -4°F to 175°F (-20°C to 79°C) Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
Maximum circuit pressure depends equally on the type and diameter of the tube used. Pressure rating given at ambient temperature 70°F/21°C.


Part Number	Tube O.D.	Male NPT
31295611	1/4"	1/8"
31295614	1/4"	1/4"
31296014	3/8"	1/4"
31296018	3/8"	3/8"
