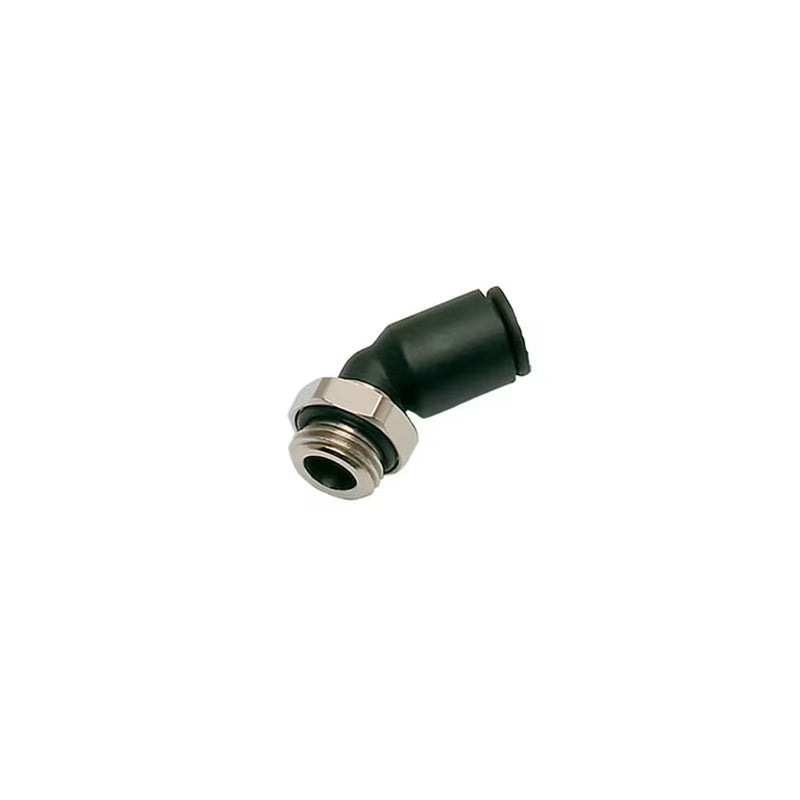

3133 06 10 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x 1/8" Male Swivel BSPP Thread | 13 mm Hex | 45° Elbow | Polymer | Pack of 10

Save $4.83

$53.08

$53.08 - $53.08

$53.08

$48.25

$48.25 - $48.25

$48.25

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3133 45° Elbow, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3133 06 10 Parker \| 10 \|
Brand:	LF 3000®
Series:	3113 Series
Shape (Orientation):	45° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	G	H	L	Kg
3133 04 19	4 mm	M5x0.8	3.5 mm	8 mm	9 mm	23 mm	13 mm	.003 Kg
3133 04 10	4 mm	1/8"	4.5 mm	13 mm	9 mm	20.5 mm	13 mm	.006 Kg
3133 06 19	6 mm	M5x0.8	3.5 mm	8 mm	11 mm	28 mm	14.5 mm	.003 Kg
3133 06 10	6 mm	1/8"	4.5 mm	13 mm	11 mm	24 mm	14.5 mm	.006 Kg
3133 06 13	6 mm	1/4"	5.5 mm	16 mm	1 mm	24 mm	14.5 mm	.011 Kg
3133 08 10	8 mm	1/8"	4.5 mm	13 mm	13.5 mm	31 mm	19.5 mm	.009 Kg
3133 08 13	8 mm	1/4"	5.5 mm	16 mm	13.5 mm	29 mm	19.5 mm	.012 Kg
3133 08 17	8 mm	3/8"	5.5 mm	20 mm	13.5 mm	29 mm	19.5 mm	.017 Kg
3133 10 13	10 mm	1/4"	5.5 mm	16 mm	16 mm	35 mm	23 mm	.014 Kg
3133 10 17	10 mm	3/8"	5.5 mm	20 mm	16 mm	33.5 mm	23 mm	.017 Kg
3133 10 21	10 mm	1/2"	7 mm	24 mm	16 mm	33.5 mm	23 mm	.026 Kg
3133 12 13	12 mm	1/4"	5.5 mm	16 mm	19 mm	40.5 mm	26 mm	.016 Kg
3133 12 17	12 mm	3/8"	5.5 mm	20 mm	19 mm	39 mm	26 mm	.019 Kg
3133 12 21	12 mm	1/2"	7 mm	24 mm	19 mm	39 mm	26 mm	.029 Kg

The body swivels for positioning purposes.

This model prevents distortion of the tube.
