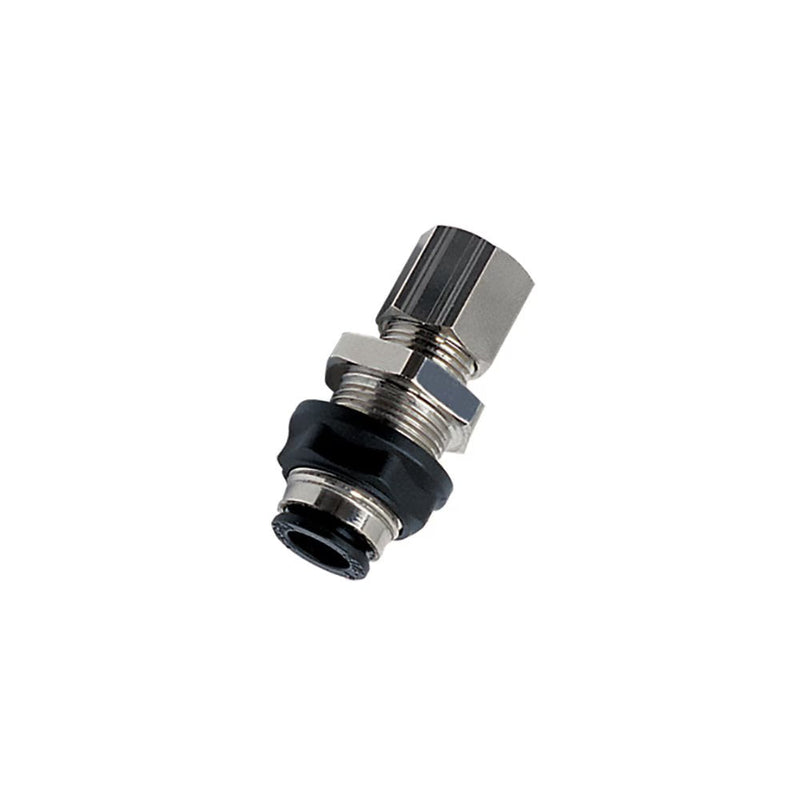

3146 04 00 by Parker | Legris Bulkhead Connector Fitting | 4 mm Push-to-Connect x 4 mm Tube Compression | 13 mm Hex | 35 mm Length | Straight | Polymer | Pack of 10

$176.42 - $176.42

$176.42

$192.40

$192.40 - $192.40

$192.40

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings:3146 Equal Mixed Bulkhead Connector

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3146 04 00 Parker \| 10 \|
Brand:	LF 3000®
Series:	3146 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	F1	F2	F3	K (Max)	L1	L2	ØT (Min)	Kg
3146 04 00	4 mm	13 mm	13 mm	10 mm	7 mm	17.5 mm	17.5 mm	10.5 mm	.018 Kg
3146 06 00	6 mm	15 mm	17 mm	13 mm	8 mm	19 mm	18 mm	12.5 mm	.028 Kg
3146 08 00	8 mm	18 mm	19 mm	14 mm	8 mm	20.5 mm	20.5 mm	15.5 mm	.036 Kg
3146 10 00	10 mm	22 mm	22 mm	19 mm	8.5 mm	23 mm	24.5 mm	18.5 mm	.062 Kg
3146 12 00	12 mm	26 mm	25 mm	22 mm	8.5 mm	27 mm	25 mm	22.5 mm	.095 Kg
3146 14 00	14 mm	29 mm	29 mm	24 mm	10.5 mm	27 mm	27 mm	25.5 mm	.124 Kg

Push-in connection with compression fitting

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
