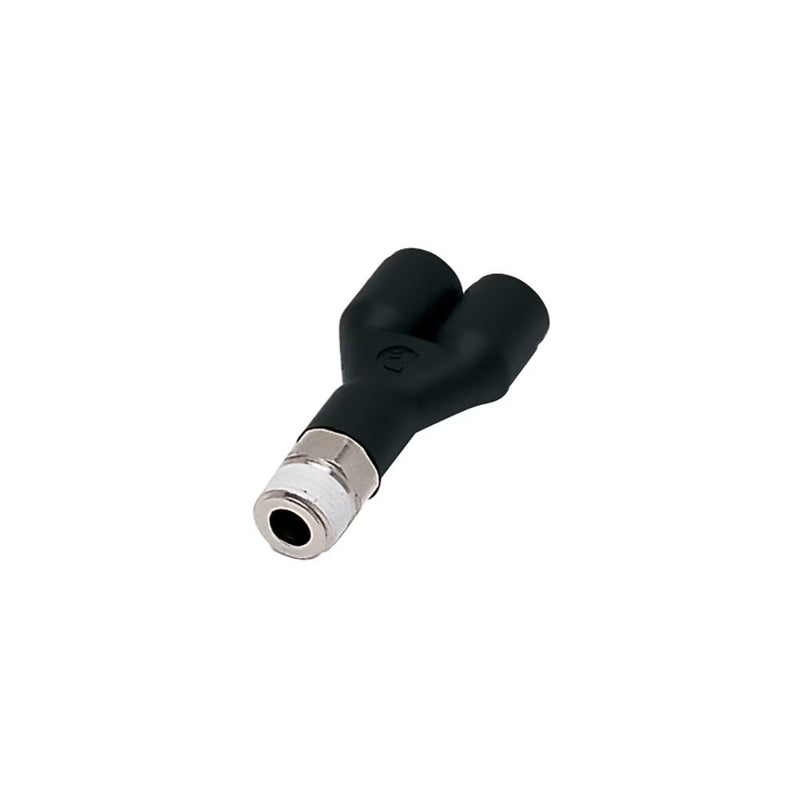

3148 10 21 by Parker | Legris Stud Fitting | 10 mm Push-to-Connect x 1/2" Male Swivel BSPT Thread | 24 mm Hex | Y | Polymer | Pack of 10

Save $20.93

$162.53

$162.53 - $162.53

$162.53

$141.60

$141.60 - $141.60

$141.60

10 items | $14.16 each

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3148 Y Piece, Male BSPT Thread

Specifications for Variant SKU: 3148 10 21 Parker \| 10 \|
Brand:	LF 3000®
Series:	3148 Series
Shape (Orientation):	Y
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	H	K	L	N	Kg
3148 04 10	4 mm	1/8"	10 mm	32.5 mm	8.5 mm	17.5 mm	9 mm	.009 Kg
3148 04 13	4 mm	1/4"	14 mm	33 mm	8.5 mm	17.5 mm	9 mm	.018 Kg
3148 06 10	6 mm	1/4"	10 mm	39.5 mm	10.5 mm	21.5 mm	11 mm	.012 Kg
3148 06 13	6 mm	1/4"	14 mm	40 mm	10.5 mm	21.5 mm	11 mm	.021 Kg
3148 08 10	8 mm	1/8"	13 mm	56.5 mm	13.5 mm	28 mm	14.5 mm	.020 Kg
3148 08 13	8 mm	1/4"	14 mm	55.5 mm	13.5 mm	28 mm	14.5 mm	.025 Kg
3148 08 17	8 mm	3/8"	16 mm	48.5 mm	13.5 mm	28 mm	14.5 mm	.034 Kg
3148 10 13	10 mm	1/4"	14 mm	60 mm	19 mm	39 mm	20 mm	.033 Kg
3148 10 17	10 mm	3/8"	16 mm	60.5 mm	19 mm	39 mm	20 mm	.043 Kg
3148 10 21	10 mm	1/2"	24 mm	61 mm	19 mm	39 mm	20 mm	.062 Kg
3148 12 17	12 mm	3/8"	19 mm	66 mm	19 mm	39 mm	20 mm	.054 Kg
3148 12 21	12 mm	1/2"	21 mm	66 mm	19 mm	39 mm	20 mm	.059 Kg

Pre-coated thread

The body swivels for positioning purposes.
