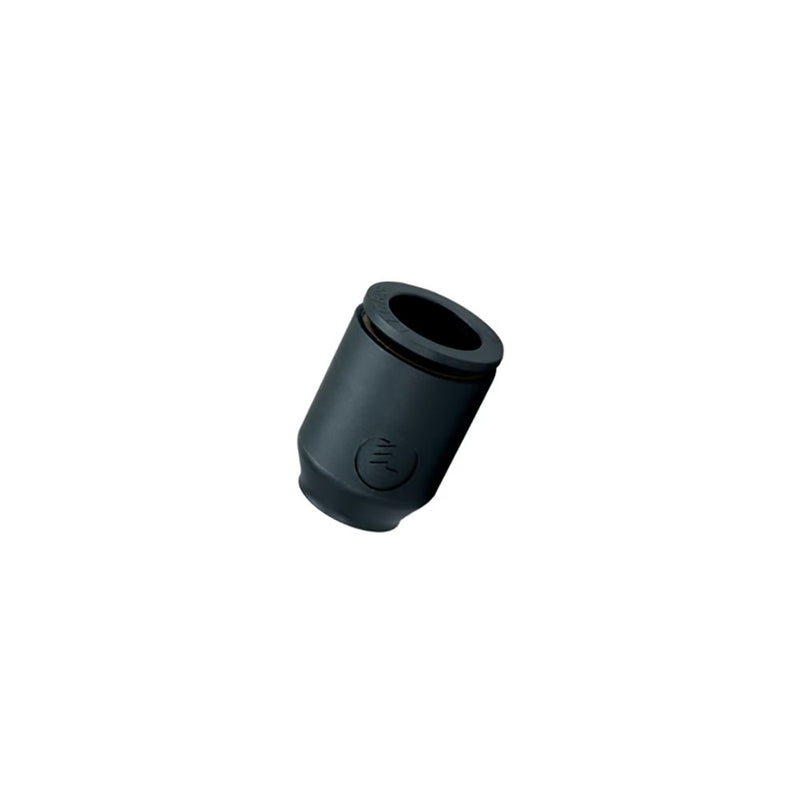

3151-06-00 by Parker | Legris Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 6mm End Cap (D) | 10.5mm (G) | 16.9mm Height | Polycarbonate

3151 06 00 by Parker | Legris Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 6mm End Cap (D) | 10.5mm (G) | 16.9mm Height | Polycarbonate | Pack of 10

Save $8.49 Save $8.49
$29.96
$29.96 - $29.96
$29.96
$21.47
$21.47 - $21.47
$21.47

by Parker Hannifin
Push-to-Connect Fittings:3151 End Caps

Package Quantity: 10 Units

Specifications for Variant SKU: 3151 06 00 Parker | 10 |
Series: 3151 Series
Shape (Orientation): No Orientation
Material(s): Polycarbonate
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FluoroPolycarbonate
  • Polyethylene
Part Number D (in) G (in) H (in) D (mm) G (mm) H (mm)
3151 04 00 5/32" .33" .55" 4 mm 8.5 mm 14.7 mm
3151 06 00 - - - 6 mm 10.5 mm 16.9 mm
3151 08 00 8 mm 13.5 mm 21.9 mm 5/16" .53" .86"
3151 10 00 - - - 10 mm 16 mm 22.2 mm
3151 12 00 - - - 12 mm 19 mm 27.7 mm
