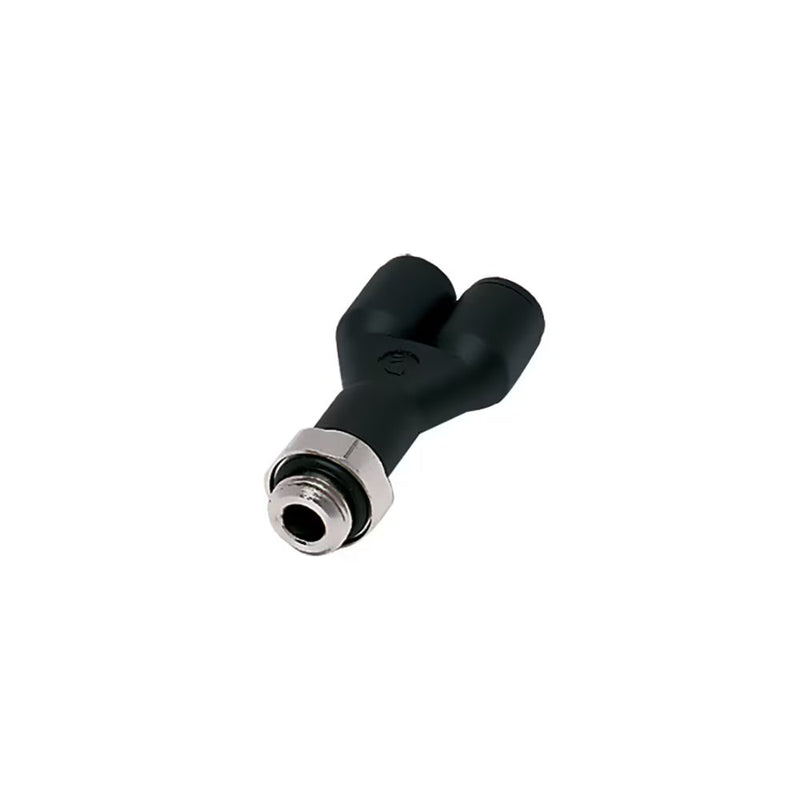

3158 10 17 by Parker | Legris Stud Fitting | 10 mm Push-to-Connect x 3/8" Male Swivel BSPP Thread | 20 mm Hex | Y | Polymer | Pack of 10

Save $24.51

$197.71

$197.71 - $197.71

$197.71

$173.20

$173.20 - $173.20

$173.20

10 items | $17.32 each

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3158 Y Piece, Male BSPP and Metric Thread

Specifications for Variant SKU: 3158 10 17 Parker \| 10 \|
Brand:	LF 3000®
Series:	3158 Series
Shape (Orientation):	Y
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	H	K	L	N	Kg
3158 04 19	4 mm	M5x0.8	3.5 mm	8 mm	32.5 mm	8.5 mm	17.5 mm	9 mm	.006 Kg
3158 06 19	6 mm	M5x0.8	3.5 mm	10 mm	39.5 mm	10.5 mm	21.5 mm	11 mm	.009 Kg
3158 06 10	6 mm	1/8"	5 mm	13 mm	39 mm	10.5 mm	21.5 mm	11 mm	.012 Kg
3158 06 13	5.5 mm	1/4"	5.5 mm	16 mm	39.5 mm	10.5 mm	21.5 mm	11 mm	.017 Kg
3158 08 10	8 mm	1/8"	5 mm	13 mm	49 mm	13.5 mm	28 mm	14.5 mm	.020 Kg
3158 08 13	8 mm	1/4"	5.5 mm	16 mm	49.5 mm	13.5 mm	28 mm	14.5 mm	.023 Kg
3158 08 17	6 mm	3/8"	6 mm	19 mm	48 mm	13.5 mm	28 mm	14.5 mm	.031 Kg
3158 10 13	10 mm	1/4"	5.5 mm	16 mm	58 mm	16 mm	33 mm	17 mm	.032 Kg
3158 10 17	10 mm	3/8"	6 mm	20 mm	57.5 mm	16 mm	33 mm	17 mm	.040 Kg
3158 10 21	10 mm	1/2"	7 mm	24 mm	58 mm	16 mm	33 mm	17 mm	.054 Kg
3158 12 17	12 mm	3/8"	6 mm	20 mm	62 mm	19 mm	39 mm	20 mm	.044 Kg
3158 12 21	12 mm	1/2"	7 mm	24 mm	63 mm	19 mm	39 mm	20 mm	.050 Kg

The body swivels for positioning purposes.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
