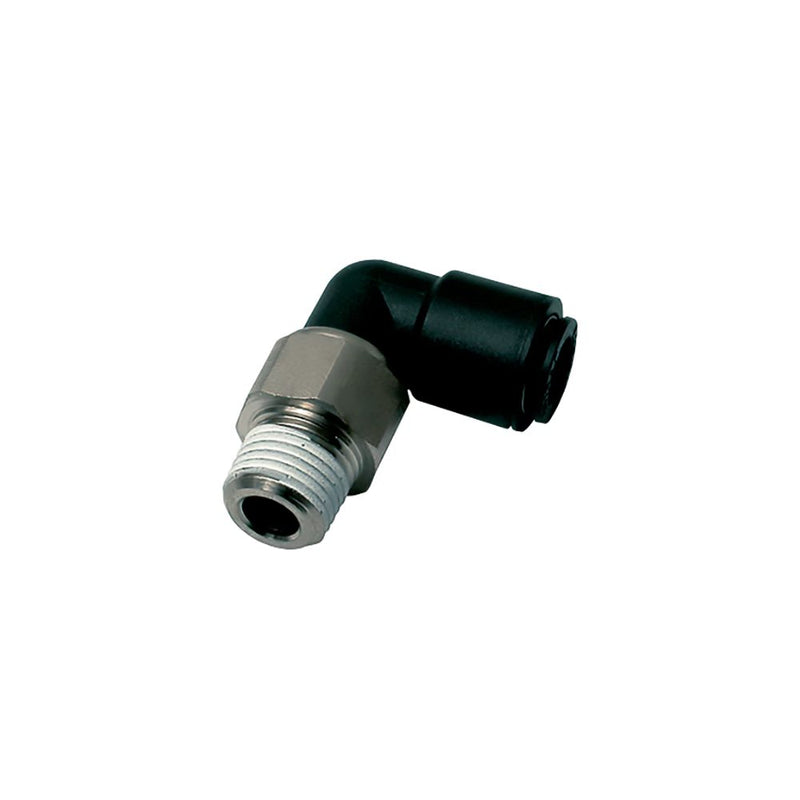

3159 10 17 by Parker | Legris Oscillating Fitting | 10mm Tube Size x 3/8" Male BSPT Thread | 19mm Hex | 90° Elbow | Polymer | Pack of 10

Save $59.56

$544.36

$544.36 - $544.36

$544.36

$484.80

$484.80 - $484.80

$484.80

10 items | $48.48 each

by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3159 Oscillating Elbow, Male BSPT Thread

Specifications for Variant SKU: 3159 10 17 Parker \| 10 \|
Series:	3159 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Coated

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting) Working Temperature: -20°C to +80°C
Advantages:	Self-Sealing Fittings Prevents fluid flow when there is no tube connected Prevents incorrect assembly Oscillating Fittings Fitting swivels when cylinder is in movement : no bending of the tube High durability fitting/tube assembly
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Body: Self-sealing fitting: nickel-plated brass Oscillating fitting: Technical Polymer Adaptor: Nickel-Plated Brass Anti-friction bearings LF 3000® Components


Part Number	ØD	C	F	G	H	L	Kg
3159 04 10	4 mm	1/8"	12 mm	11 mm	22 mm	17.5 mm	.013 Kg
3159 06 10	6 mm	1/8"	14 mm	14 mm	26.5 mm	20.5 mm	.020 Kg
3159 06 13	6 mm	1/4"	14 mm	14 mm	23.5 mm	20.5.5 mm	.022 Kg
3159 08 10	8 mm	1/8"	17 mm	16 mm	32 mm	23.5 mm	.034 Kg
3159 08 13	8 mm	1/4"	17 mm	16 mm	29 mm	23.5 mm	.034 Kg
3159 08 17	8 mm	3/8"	17 mm	16 mm	25 mm	23.5 mm	.031 Kg
3159 10 13	10 mm	1/4"	19 mm	19.5 mm	37.5 mm	29 mm	.051 Kg
3159 10 17	10 mm	3/8"	19 mm	19.5 mm	33.5 mm	29 mm	.046 Kg
3159 12 13	12 mm	1/4"	21 mm	22 mm	44.5 mm	33.5 mm	.074 Kg
3159 12 17	12 mm	3/8"	21 mm	22 mm	41 mm	33.5 mm	.068 Kg

Pre-coated thread
