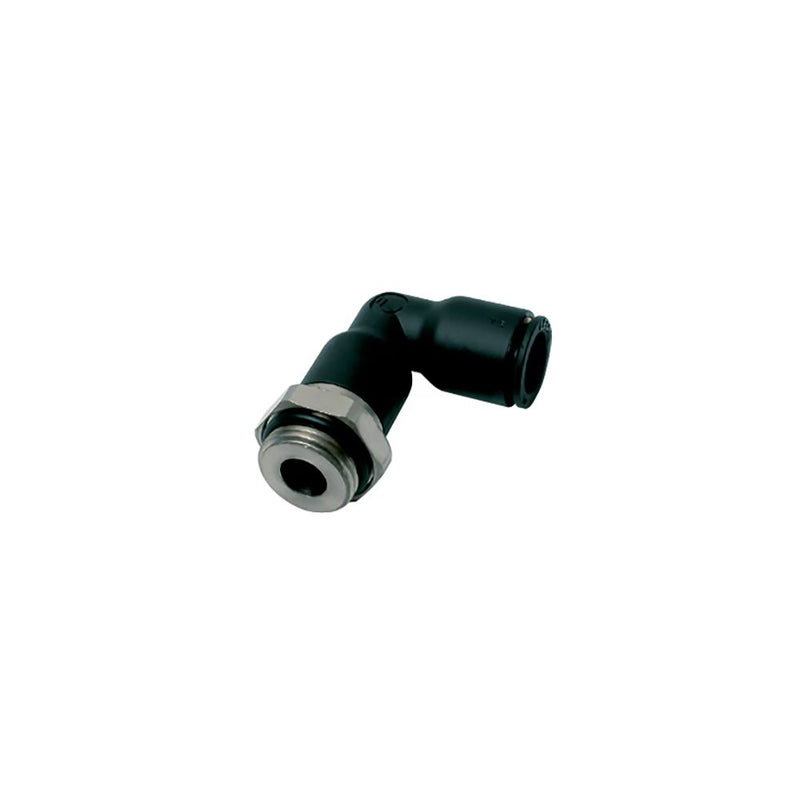

3169 14 17 by Parker | Legris Stud Fitting | 14 mm Push-to-Connect x 3/8" Male Swivel BSPP Thread | 22 mm Hex | 90° Elbow | Polymer | Pack of 10

Save $18.04

$134.97

$134.97 - $134.97

$134.97

$116.93

$116.93 - $116.93

$116.93

10 items | $11.69 each

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3169 Extended Stud Elbow, Male BSPP and Metric Thread

Specifications for Variant SKU: 3169 14 17 Parker \| 10 \|
Brand:	LF 3000®
Series:	3169 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	G	H	L	Kg
3169 04 19	4 mm	M5x0.8	3.5 mm	8 mm	8.5 mm	23 mm	19 mm	.006 Kg
3169 04 10	4 mm	1/8"	5 mm	13 mm	8.5 mm	22.5 mm	19 mm	.008 Kg
3169 04 13	4 mm	1/4"	5.5 mm	16 mm	8.5 mm	22.5 mm	19 mm	.014 Kg
3169 06 19	6 mm	M5x0.8	3.5 mm	10 mm	10.5 mm	27.5 mm	23 mm	.008 Kg
3169 06 55	4 mm	M7x1	4.5 mm	10 mm	10.5 mm	26 mm	23 mm	.012 Kg
3169 06 10	6 mm	1/8"	5 mm	13 mm	10.5 mm	27 mm	23 mm	.011 Kg
3169 06 13	6 mm	1/4"	5.5 mm	16 mm	10.5 mm	27 mm	23 mm	.016 Kg
3169 08 10	8 mm	1/8"	5 mm	13 mm	13.5 mm	36 mm	29.5 mm	.018 Kg
3169 08 13	8 mm	1/4"	5.5 mm	16 mm	13.5 mm	33 mm	29.5 mm	.021 Kg
3169 08 17	8 mm	3/8"	5.5 mm	20 mm	13.5 mm	33 mm	29.5 mm	.028 Kg
3169 10 13	10 mm	1/4"	5.5 mm	16 mm	16 mm	40.5 mm	34.5 mm	.028 Kg
3169 10 17	10 mm	3/8"	5.5 mm	20 mm	16 mm	40.5 mm	34.5 mm	.036 Kg
3169 10 21	10 mm	1/2"	7 mm	24 mm	16 mm	40.5 mm	34.5 mm	.049 Kg
3169 12 13	12 mm	1/4"	5.5 mm	19 mm	19 mm	44.5 mm	40.5 mm	.044 Kg
3169 12 17	12 mm	3/8"	5.5 mm	20 mm	19 mm	42 mm	40.5 mm	.038 Kg
3169 12 21	12 mm	1/2"	7 mm	24 mm	19 mm	42 mm	40.5 mm	.043 Kg
3169 14 17	14 mm	3/8"	5.5 mm	22 mm	22 mm	51 mm	46.5 mm	.059 Kg
3169 14 21	14 mm	1/2"	7 mm	24 mm	22 mm	48.5 mm	46.5 mm	.063 Kg
3169 16 17	16 mm	3/8"	7.5 mm	27 mm	27 mm	82.5 mm	52 mm	.220 Kg
3169 16 21	16 mm	1/2"	9 mm	27 mm	27 mm	82.5 mm	52 mm	.206 Kg

The body swivels for positioning purposes.
